LINE

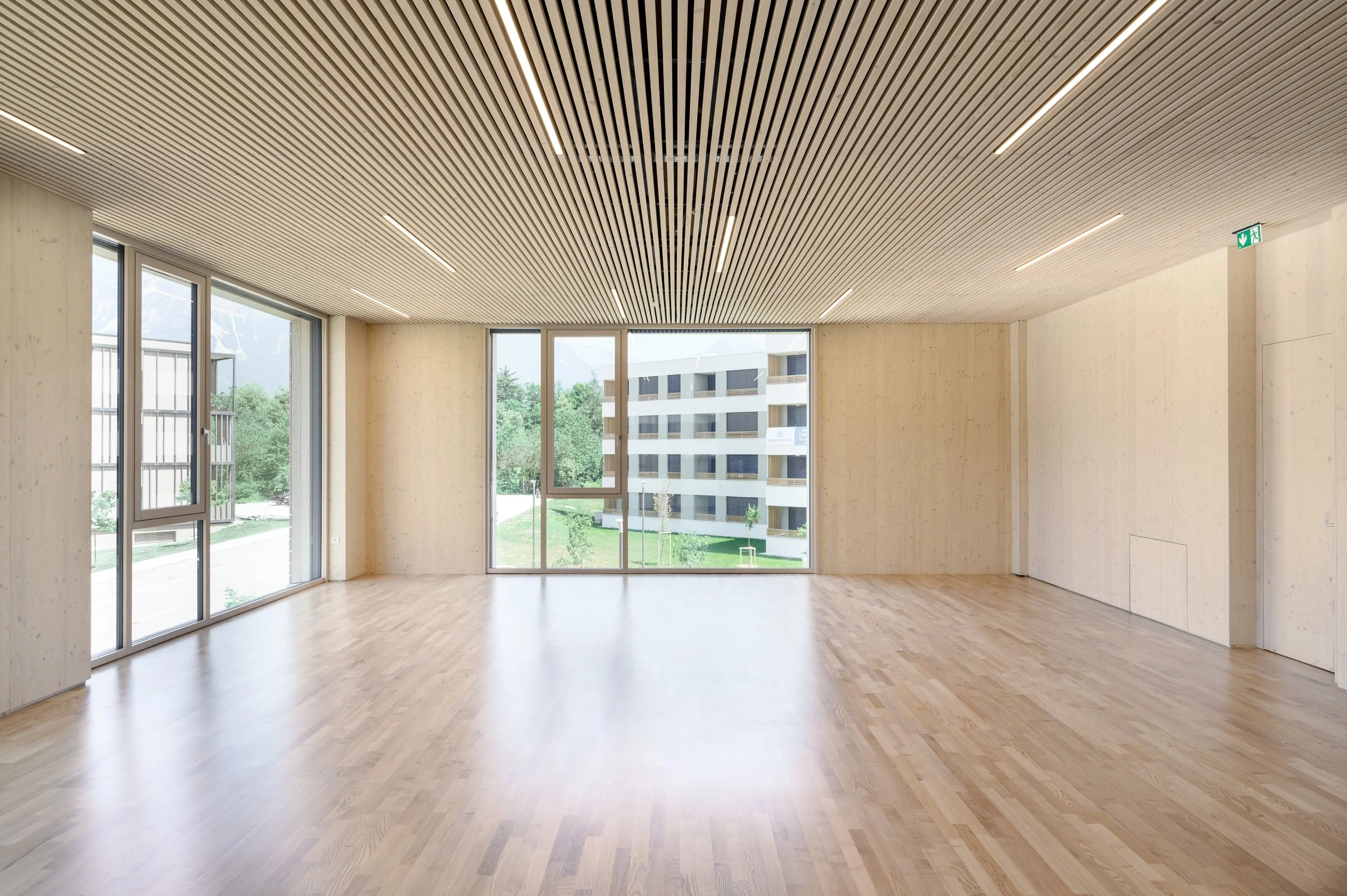

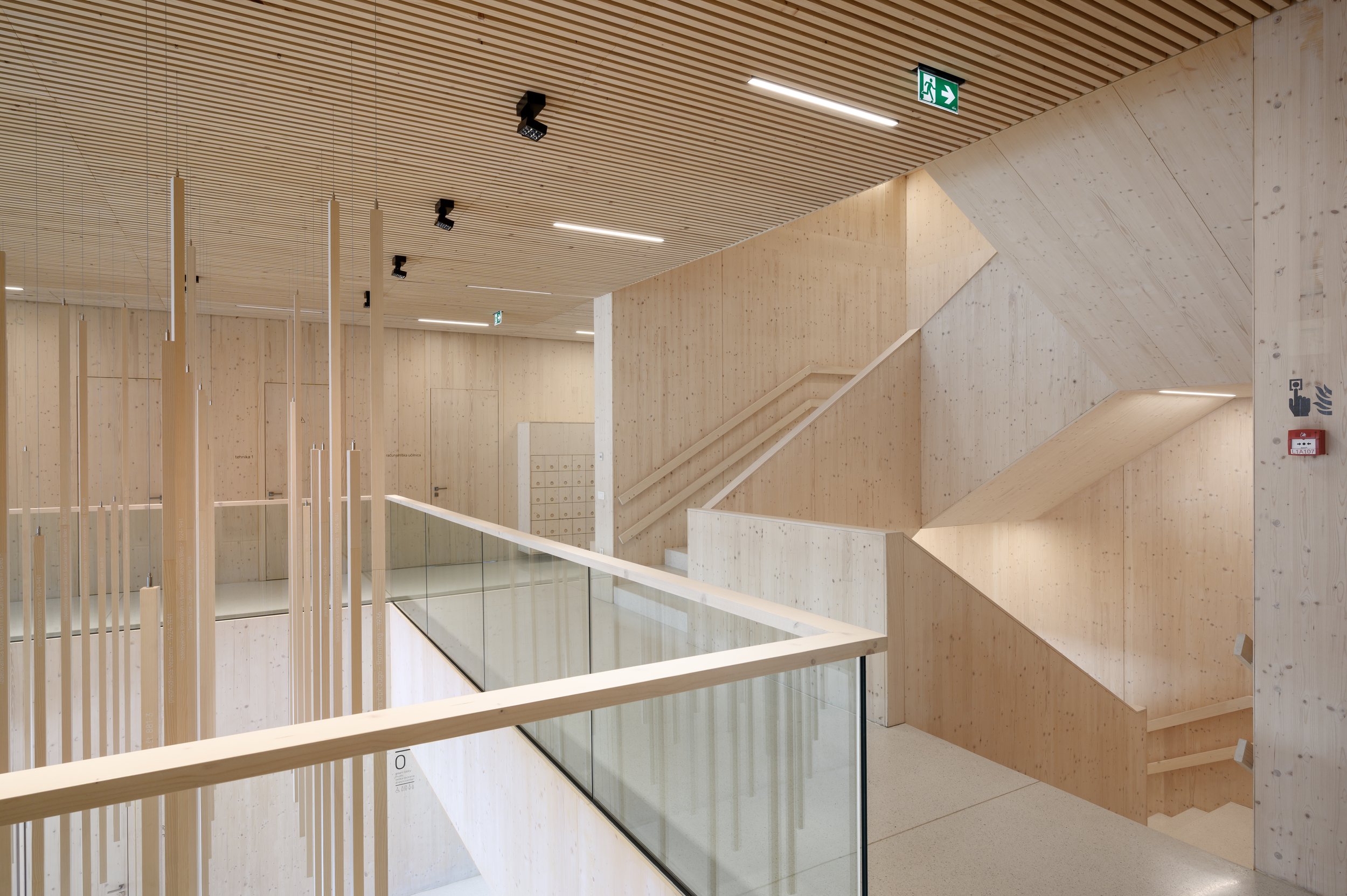

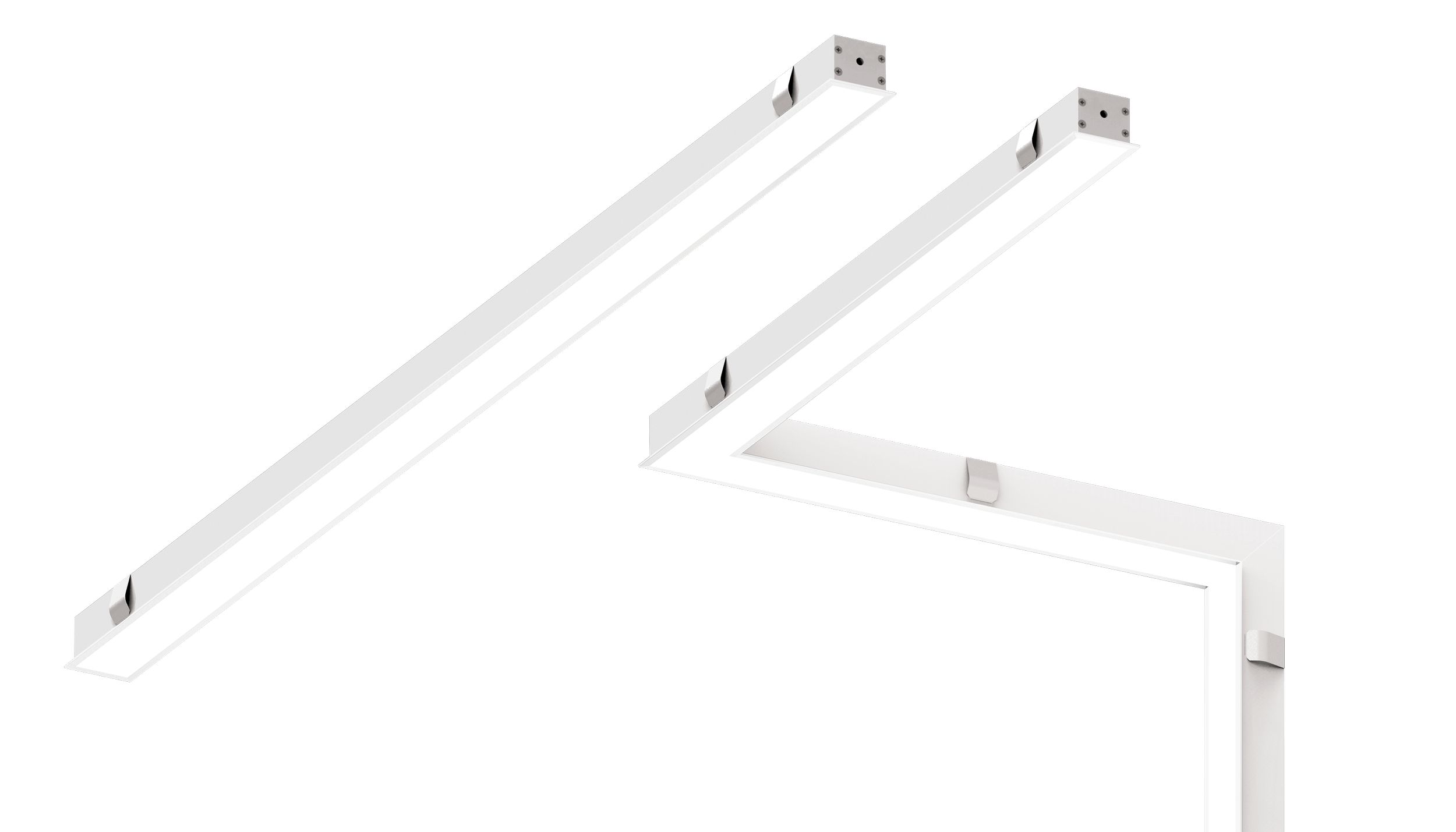

The LINE linear LED luminaire is a built-in lighting system designed for seamless architectural integration. Installed flush within ceilings or walls, it creates continuous, glare-free light lines that emphasize structure and form. Like QUAD, LINE is available in customizable lengths and configurations, ideal for spaces requiring visual precision with zero intrusion.

Send Inquiry

  • Installation: Recessed Optics: Opal/Microprism diffuser Luminaire real flux/w: 105 lm/W CCT: 2700/3000/4000 K CRI: 80 MacAdam: ≤ 3 Rated life hours: 50000h L90 B10 at 35°C Power/m: 16-23 W/m Input voltage: 220-240 V AC / 50-60 Hz Driver: Driver included Dimming: FO/DALI Body: Aluminium, white RAL9016/black RAL9005 powder painted Dimension: 595-3445 x 45 x 33 mm IP protection: IP43 Warranty: 7 years

  • LAB4C

    LAB4P

    LAB4W

    LAB4P D/I

    LAB4W D/I

    LAB4C installation instructions

    LAB4P installation instructions

7 year warranty

Built-in lighting

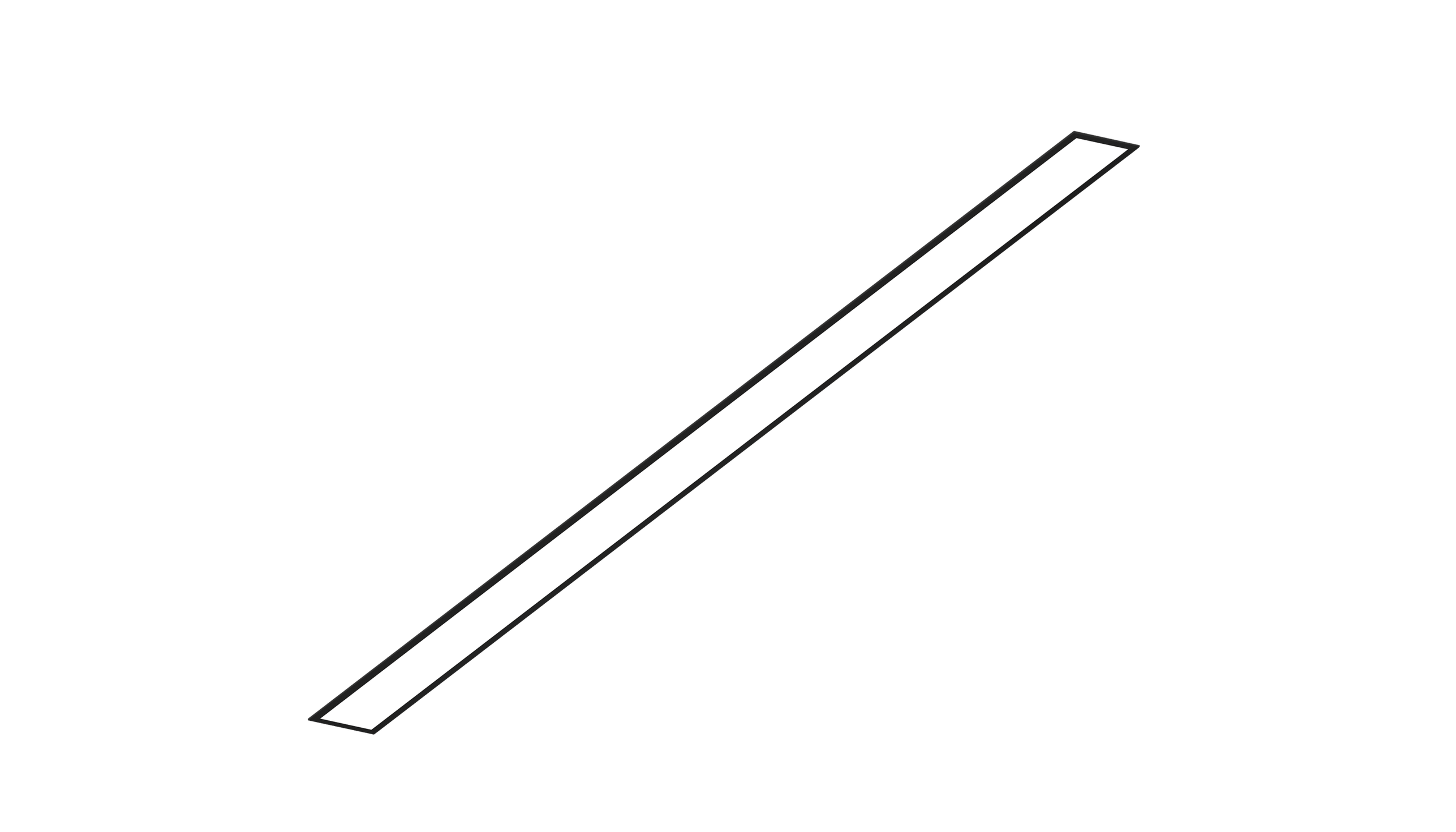

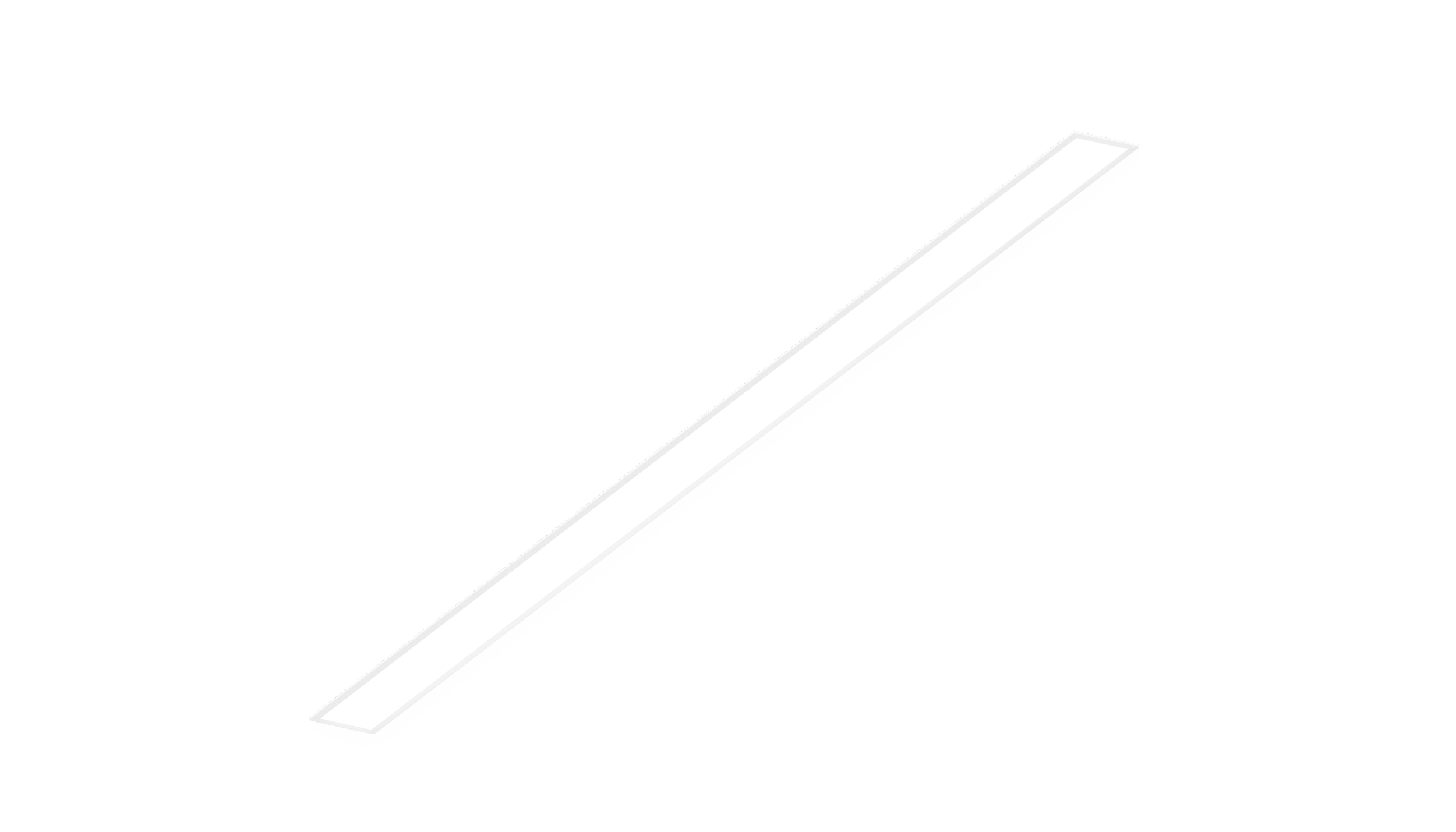

Black or white color finish

LINE—R

Product description: LINE—R D OP 0lm 0W 2700K 585mm IP43 White

Order code: LINERD227O06LFOB

Housing
