QUAD

The QUAD linear aluminium LED luminaire is a versatile interior lighting solution for ceilings, walls, or suspended installations. It offers customizable lengths, shapes, and specifications, including continuous row lighting and chain connections. Designed for spaces like hotel rooms, hallways, and offices, QUAD ensures energy efficiency with LED technology while maintaining a contemporary design.

Send Inquiry

  • Installation: Ceiling/Suspended/Wall Optics: Opal/Microprism diffuser Luminaire real flux/w: 105 lm/W CCT: 2700/3000/4000 K CRI: 80 MacAdam: ≤ 3 Rated life hours:50000h L90 B10 at 35°C Power/m: 16-23 W/m Input voltage: 220-240 V AC / 50-60 Hz Driver: Driver included Dimming: FO/DALI Suspension kit: Included Body: Aluminium, white RAL9016/black RAL9005 powder painted Dimension: 585-3435 x 35 x 63 mm IP protection: IP20/IP43 Warranty: 7 years

  • QUAD—C

    QUAD—P

    QUAD—W

    QUAD—P D/I

    QUAD—W D/I

    QUAD—C installation instructions

    QUAD—P installation instructions

7 year warranty

Versatile lighting

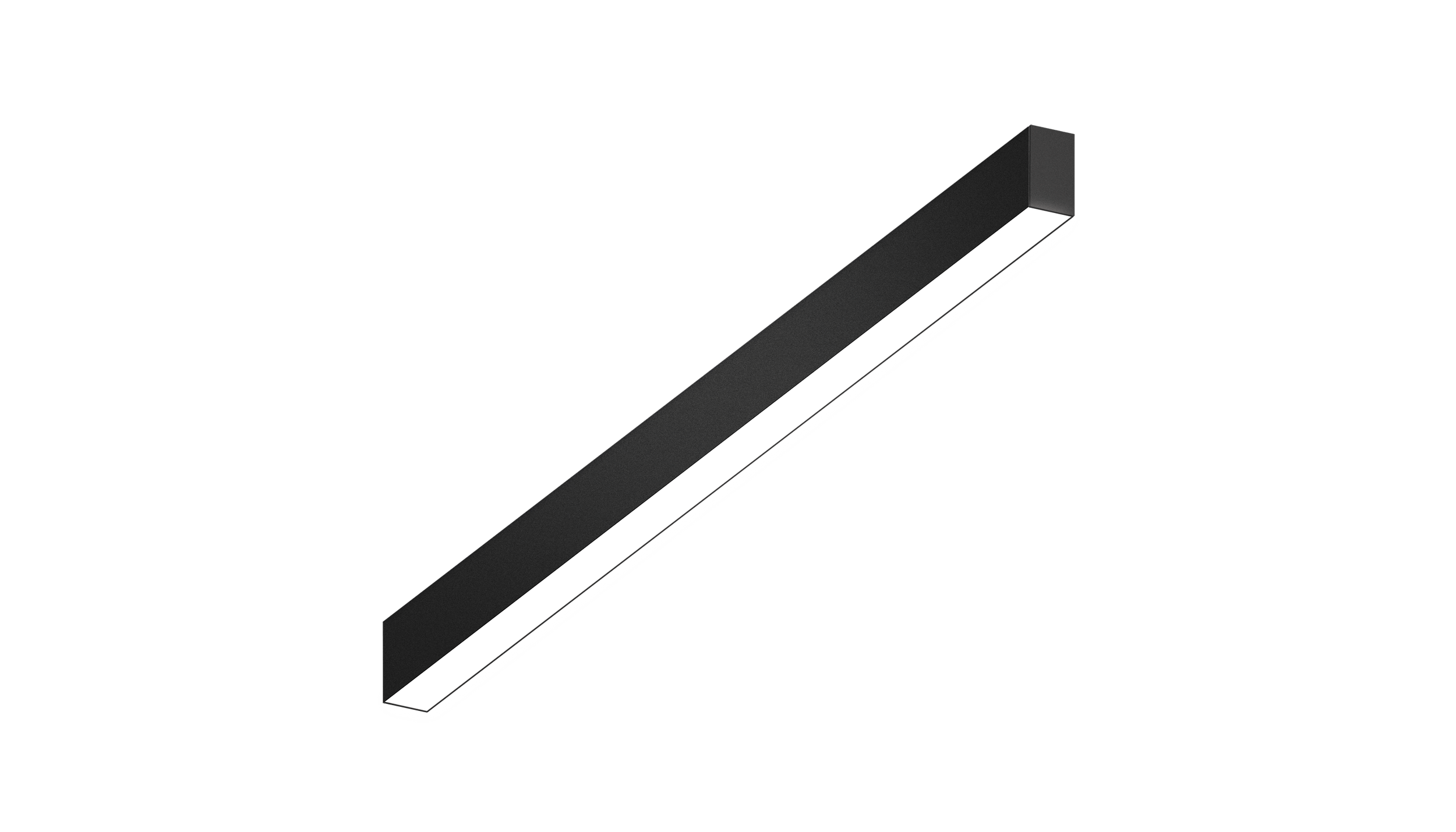

Black or white color finish

QUAD—C Ceiling

Product description: QUAD—C OP 9W 2700K 924lm 585mm IP40 White

Order code: QUADC127O06LFOB

Housing
