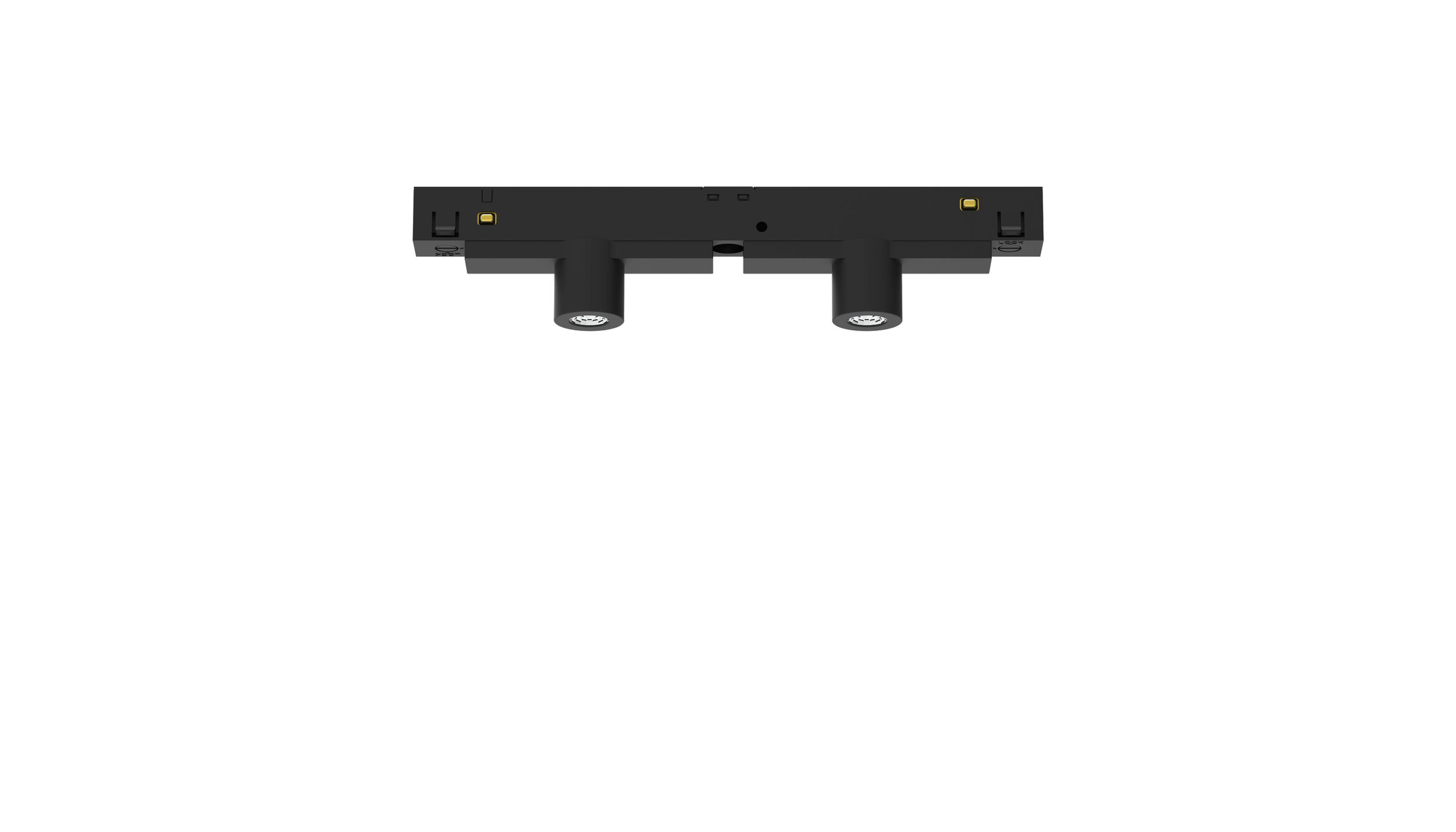

TRAX—Double Spot Reflector
A dual-head spotlight module for flexible, high-contrast lighting. Independently adjustable reflectors allow for dynamic lighting compositions, making it suitable for gallery settings, retail environments, or any space that demands versatile object highlighting.
-
Installation: Track Optics: PMMA TIR Lens Beam angle: 36° Luminaire real flux: 804 lm CCT: 3000 K CRI: 90 MacAdam: ≤ 3 Rated life hours: 50000h L90 B10 at 35°C Power: 10 W Input voltage: 48V Driver: DC/DC Converter included Dimming: DALI Body: Aluminium, black RAL9005 powder painted Dimension: Ø21 x 24 mm IP protection: IP20 Weight: 96g Warranty: 5 years
-
| ORDER CODE | W | CCT | CRI | BEAM ANGLE | DIMMING | REAL FLUX | DIMENSION | KG | DATASHEET |
|---|---|---|---|---|---|---|---|---|---|
| TRAX-DS-2X21-3000-36-B | 10 | 3000 K | 90 | 36° | DALI | 804 lm | 2x Ø 21 X 25 mm | 0.1 | View PDF → |
COMPATIBLE WITH ALL TRAX PROFILES
