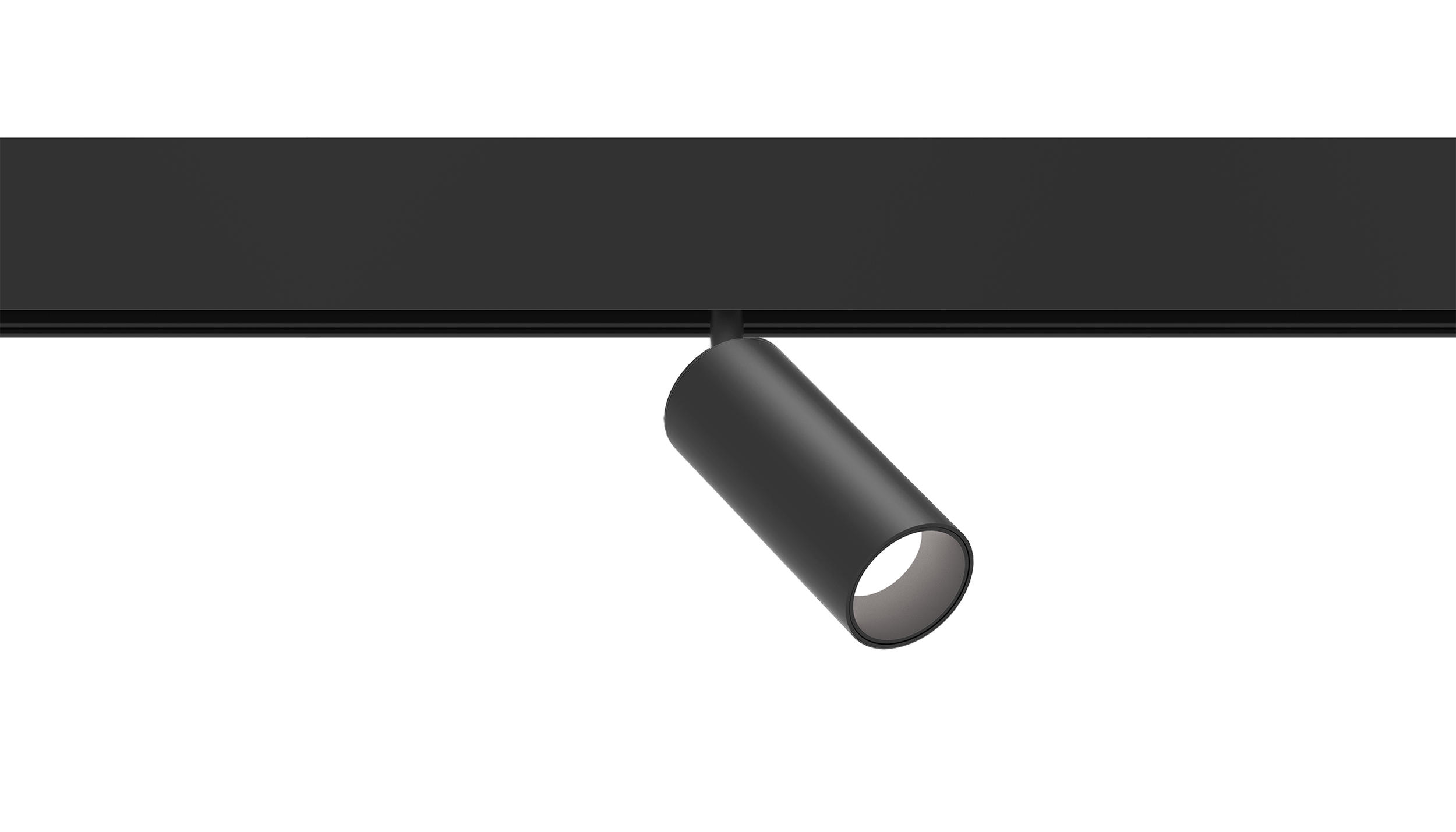

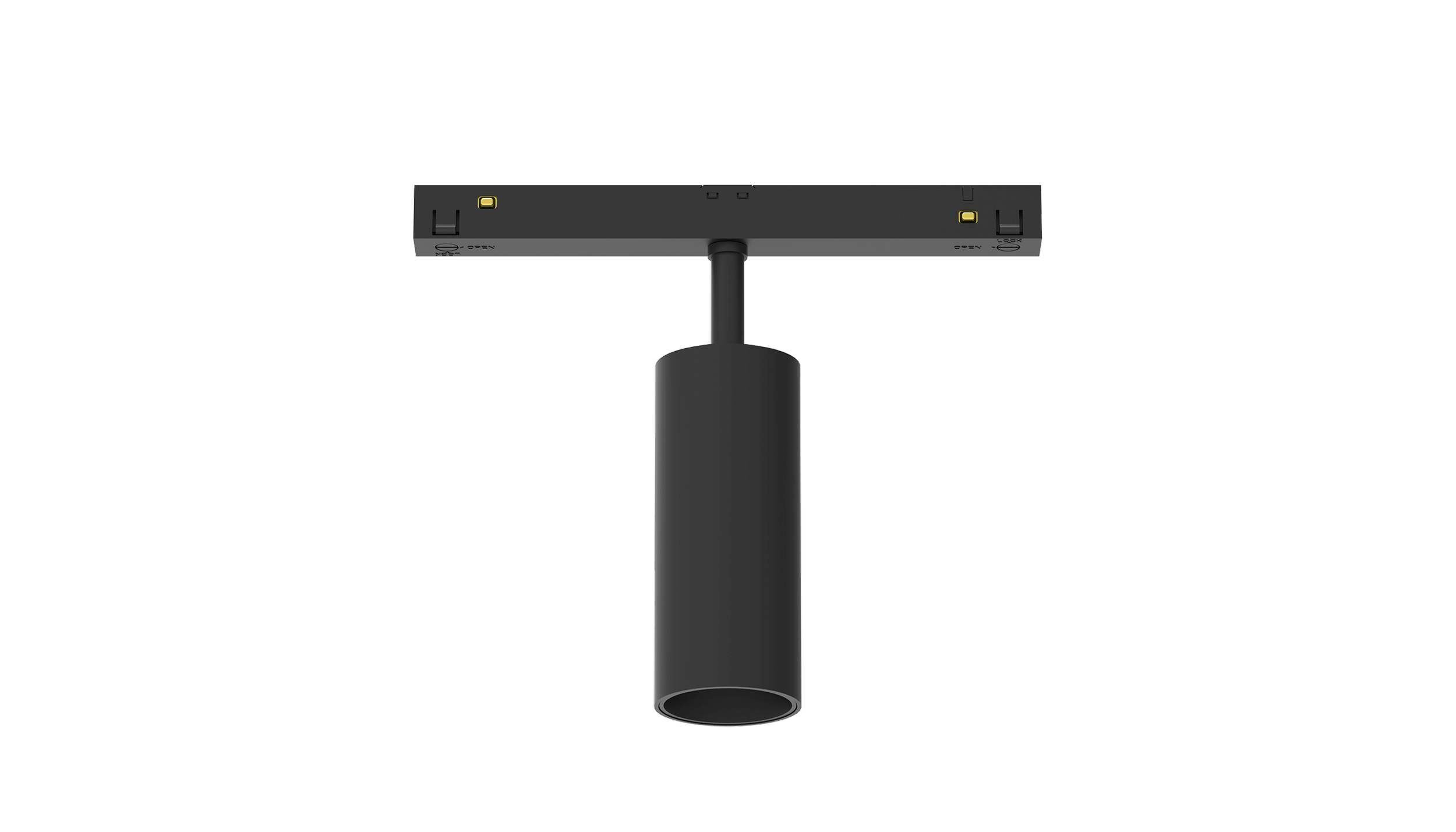

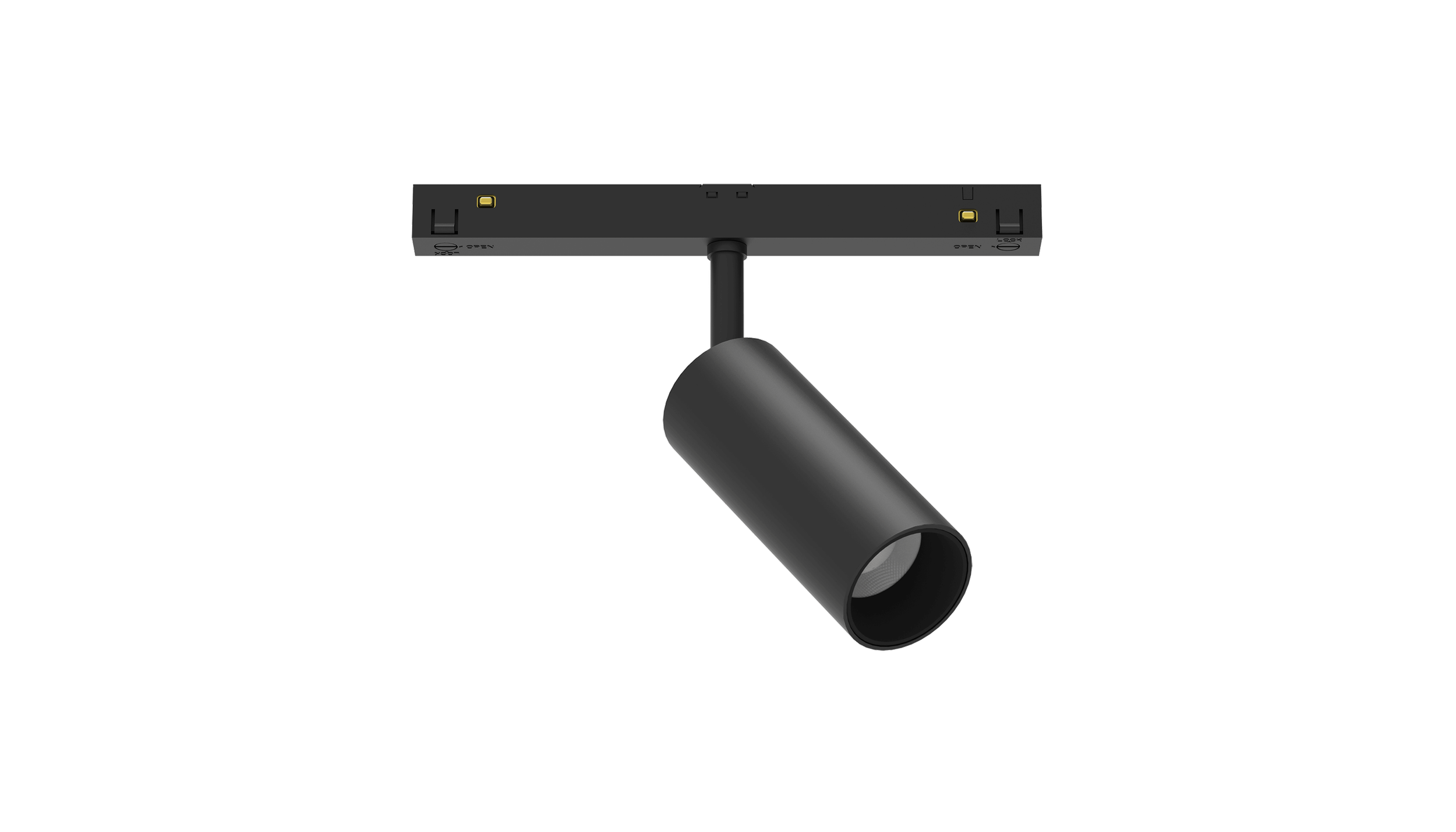

TRAX—Single Reflector M
A mid-sized directional spotlight designed for general or accent lighting. Larger than the S version, it provides increased output and broader beam control, making it suitable for environments requiring scalable lighting solutions with a refined aesthetic.
-
Installation: Track Optics: PMMA TIR Lens Beam angle: 36° Luminaire real flux: 1085 lm CCT: 3000 K CRI: 90 MacAdam: ≤ 3 Rated life hours: 50000h L90 B10 at 35°C Power: 12.5 W Input voltage: 48V Driver: DC/DC Converter included Dimming: DALI Body: Aluminium, black RAL9005 powder painted Dimension: Ø45 x 108 mm IP protection: IP20 Weight: 248g Warranty: 5 years
-
| ORDER CODE | W | CCT | CRI | BEAM ANGLE | DIMMING | REAL FLUX | DIMENSION | KG | DATASHEET |
|---|---|---|---|---|---|---|---|---|---|
| TRAX-RM-45-3000-36-B | 12.5 | 3000 K | 90 | 36° | DALI | 1085 lm | Ø 45 X 108 mm | 0.25 | View PDF → |
COMPATIBLE WITH ALL TRAX PROFILES
