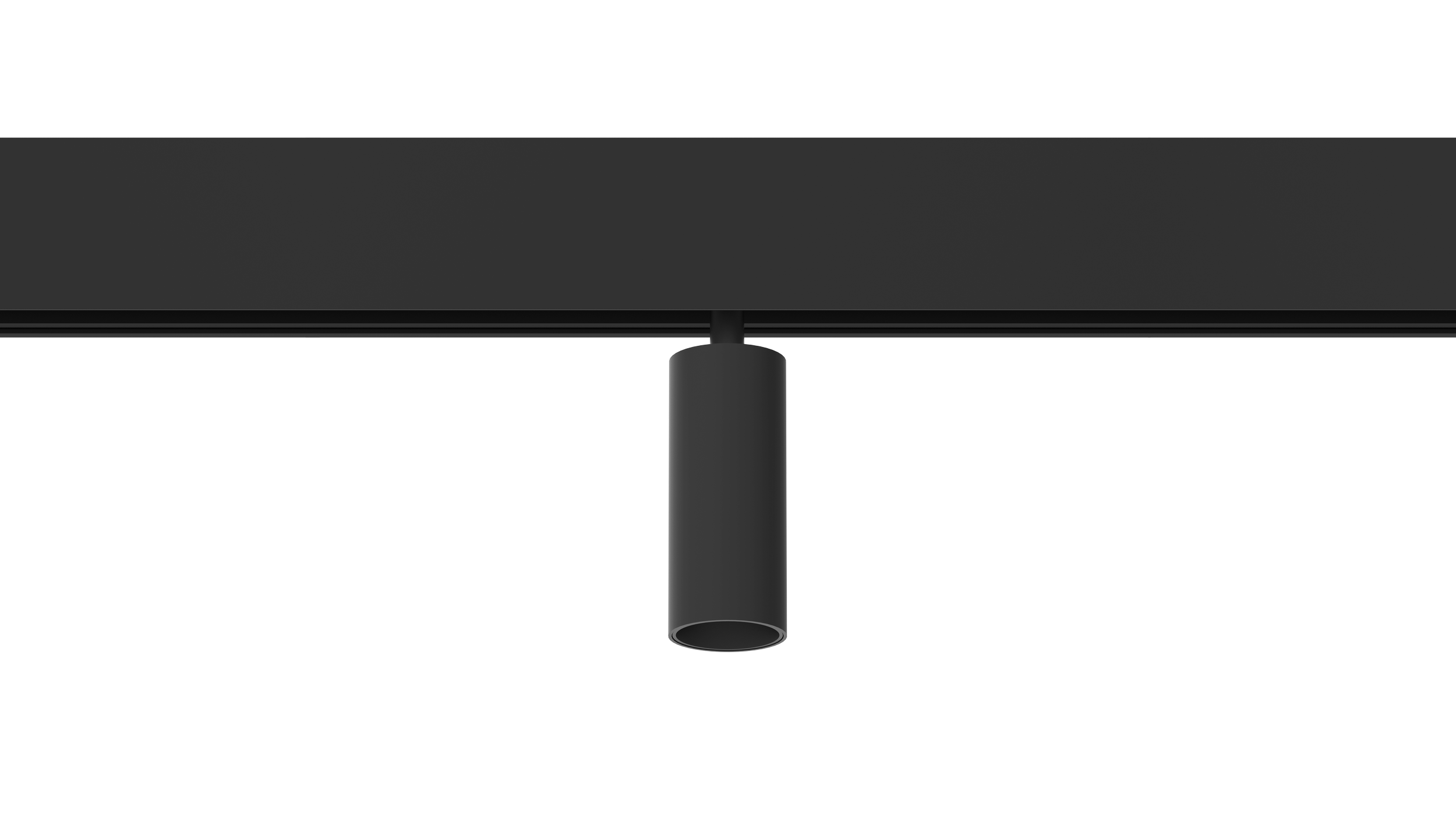

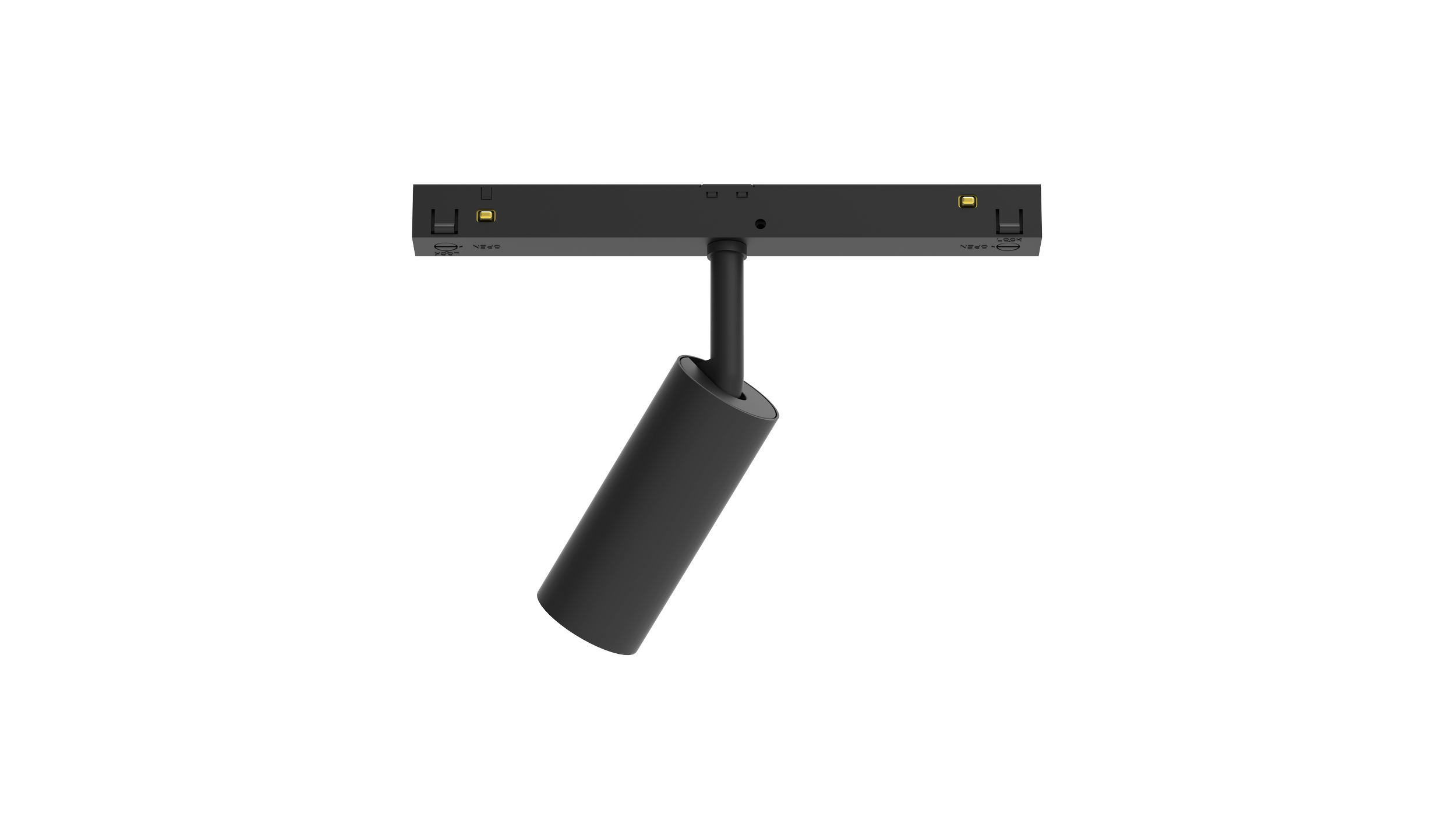

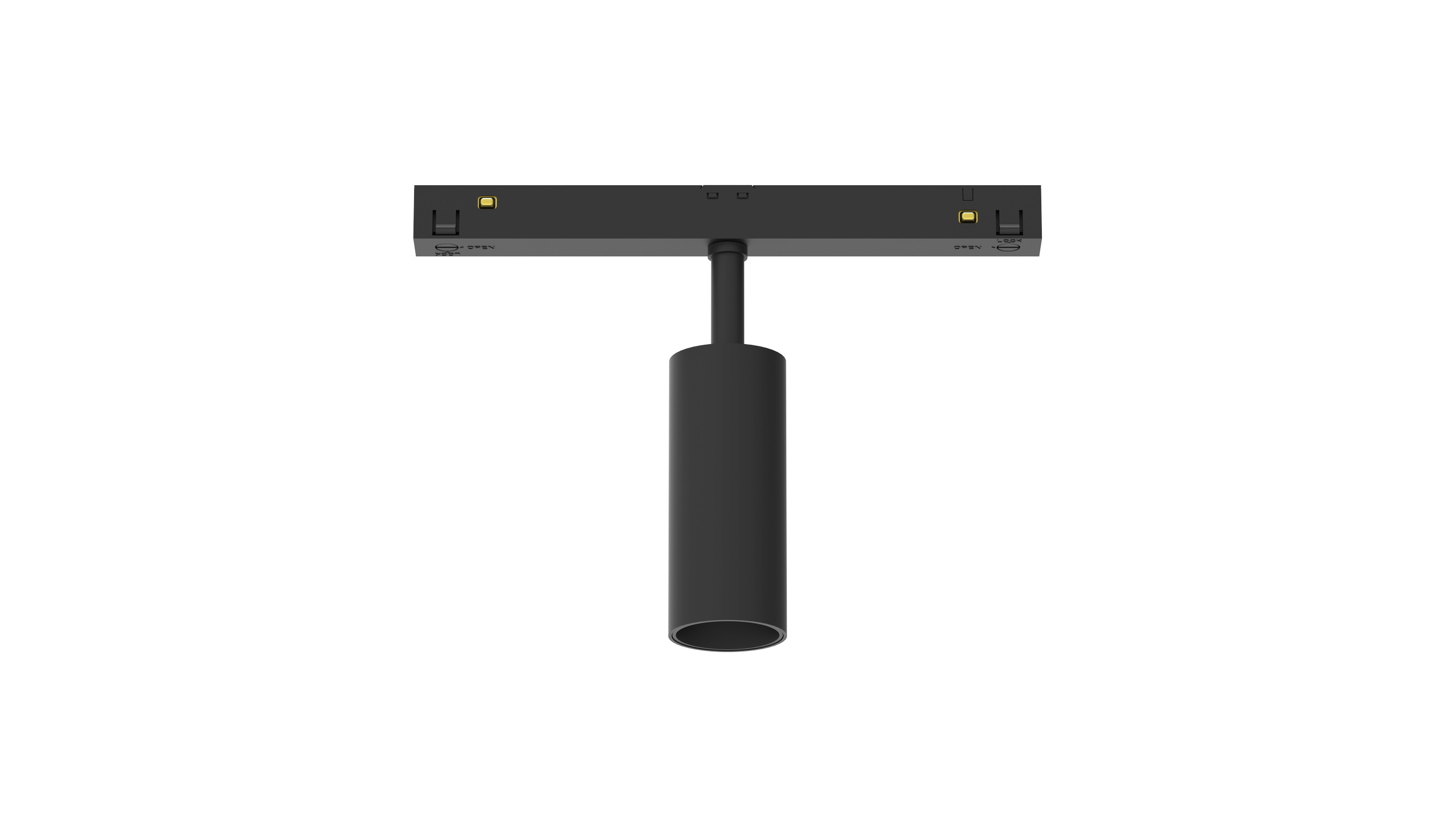

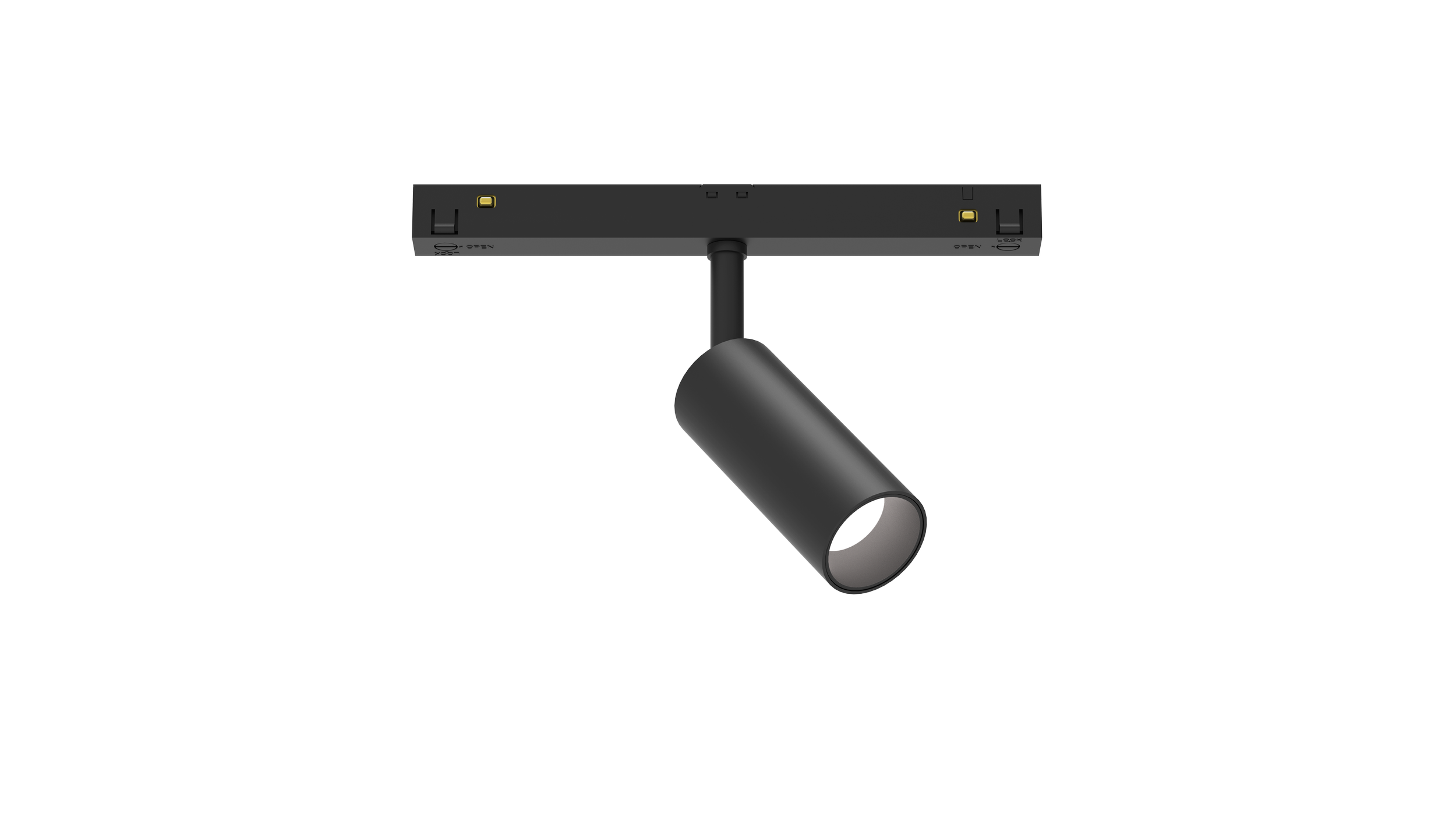

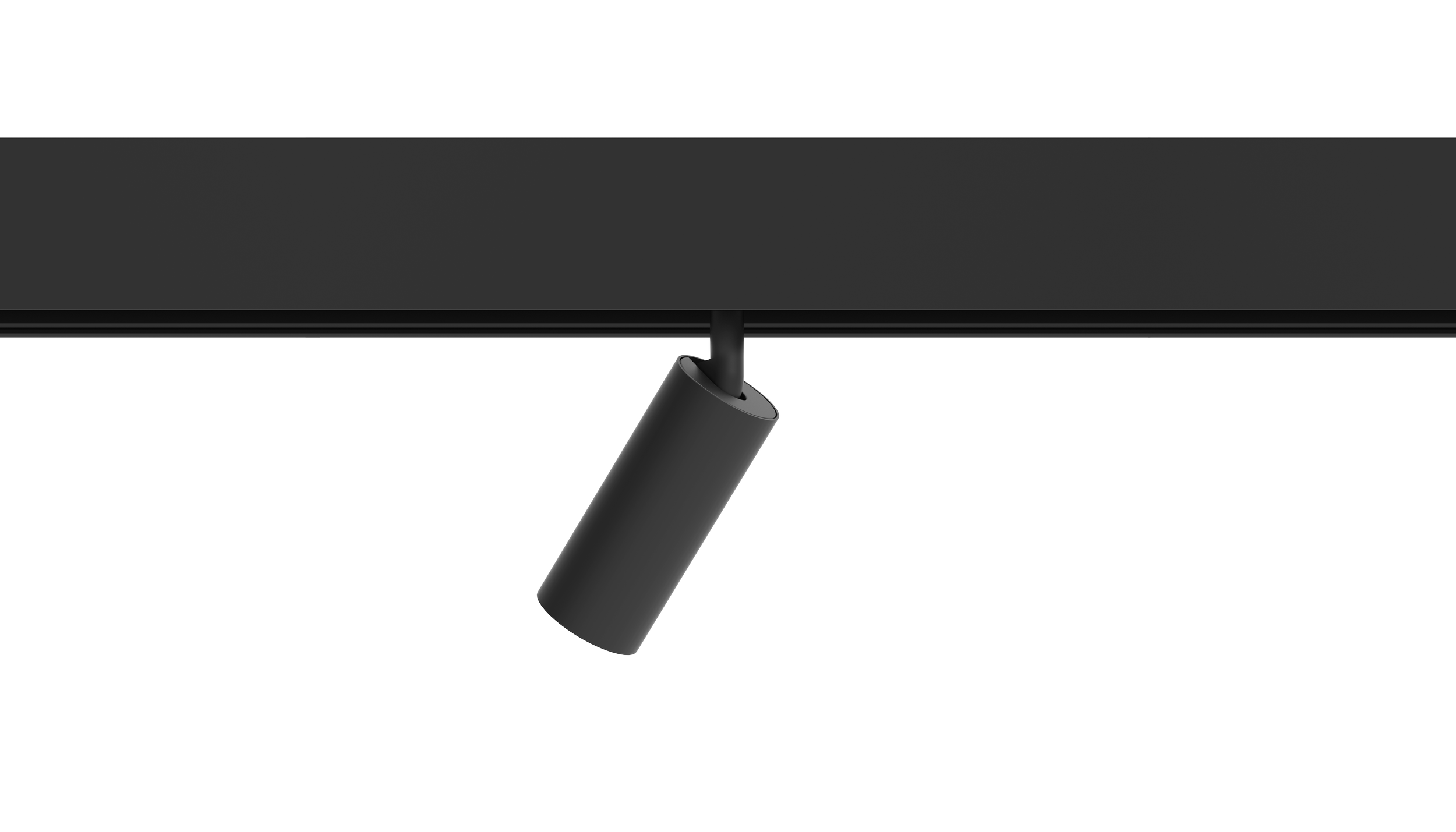

TRAX—Single Reflector S
A compact spotlight module offering precise directional lighting. The small single reflector is perfect for highlighting architectural details, art, retail displays, or any space where controlled, targeted illumination is needed without overwhelming the visual field.
-
Installation: Track Optics: PMMA TIR Lens Beam angle: 36° Luminaire real flux: 676 lm CCT: 3000 K CRI: 90 MacAdam: ≤ 3 Rated life hours: 50000h L90 B10 at 35°C Power: 8 W Input voltage: 48V Driver: DC/DC Converter included Dimming: DALI Body: Aluminium, black RAL9005 powder painted Dimension: Ø35 x 85 mm IP protection: IP20 Weight: 149g Warranty: 5 years
-
| ORDER CODE | W | CCT | CRI | BEAM ANGLE | DIMMING | REAL FLUX | DIMENSION | KG | DATASHEET |
|---|---|---|---|---|---|---|---|---|---|
| TRAX-RS-35-3000-36-B | 8 | 3000 K | 90 | 36° | DALI | 676 lm | Ø 35 X 85 mm | 0.15 | View PDF → |
COMPATIBLE WITH ALL TRAX PROFILES
ALL TRAX MODULES
