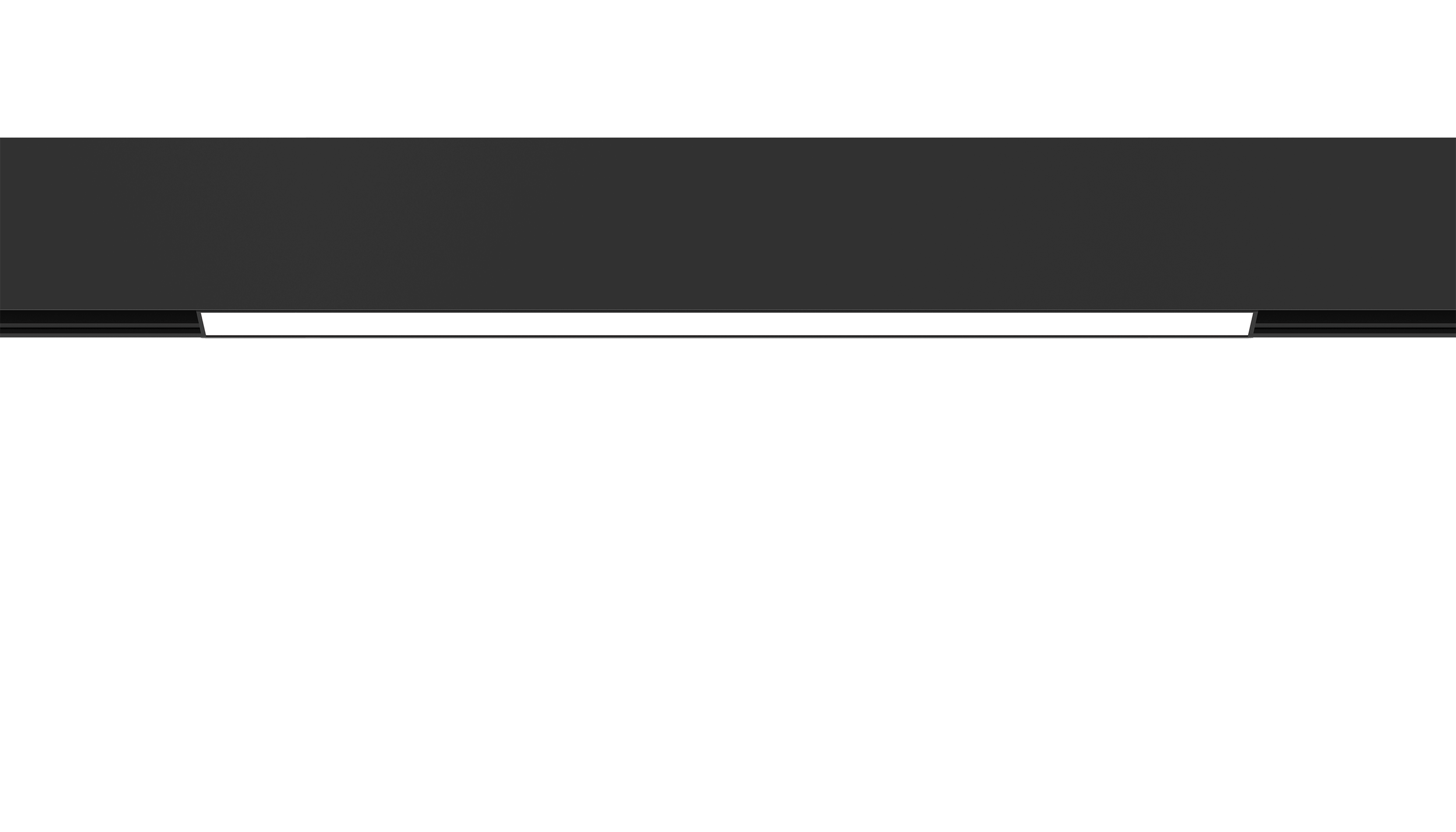

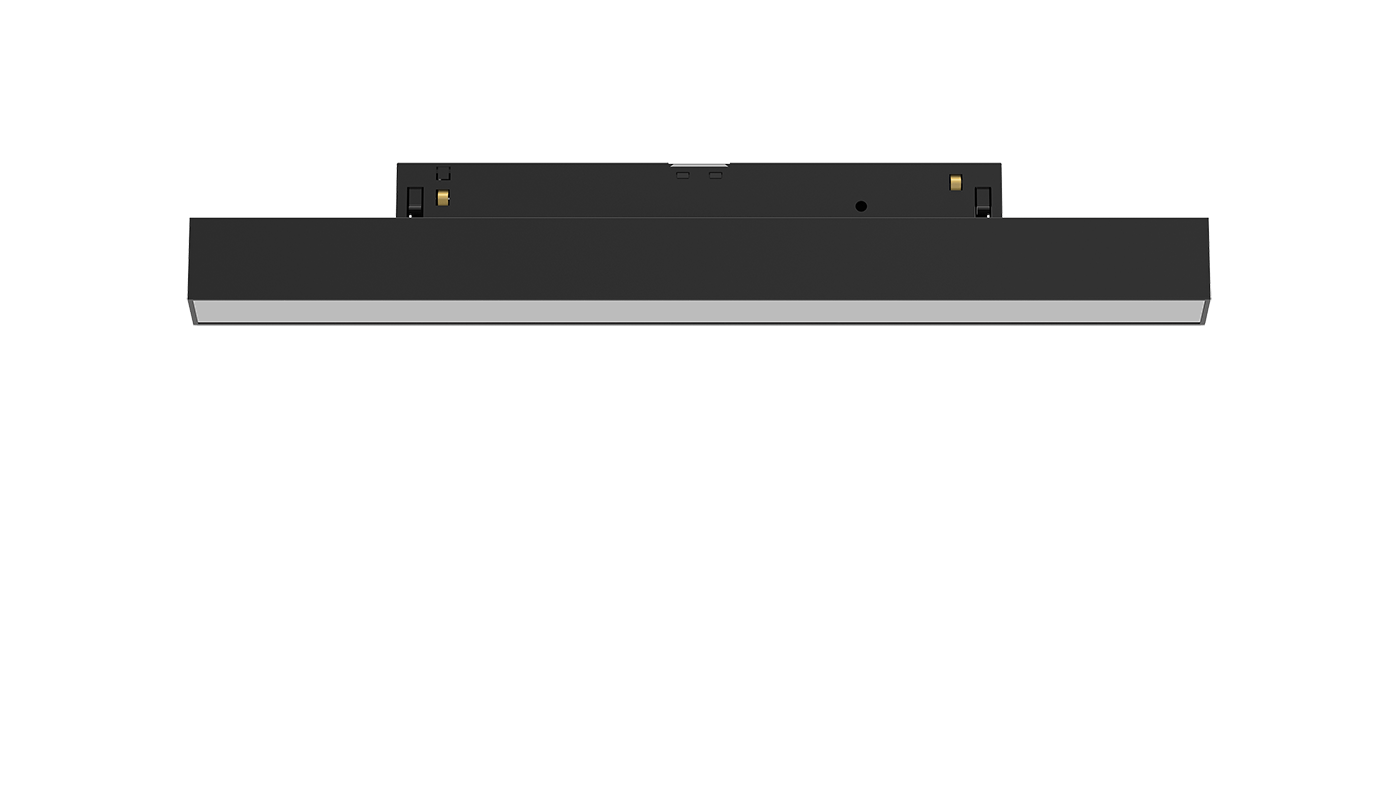

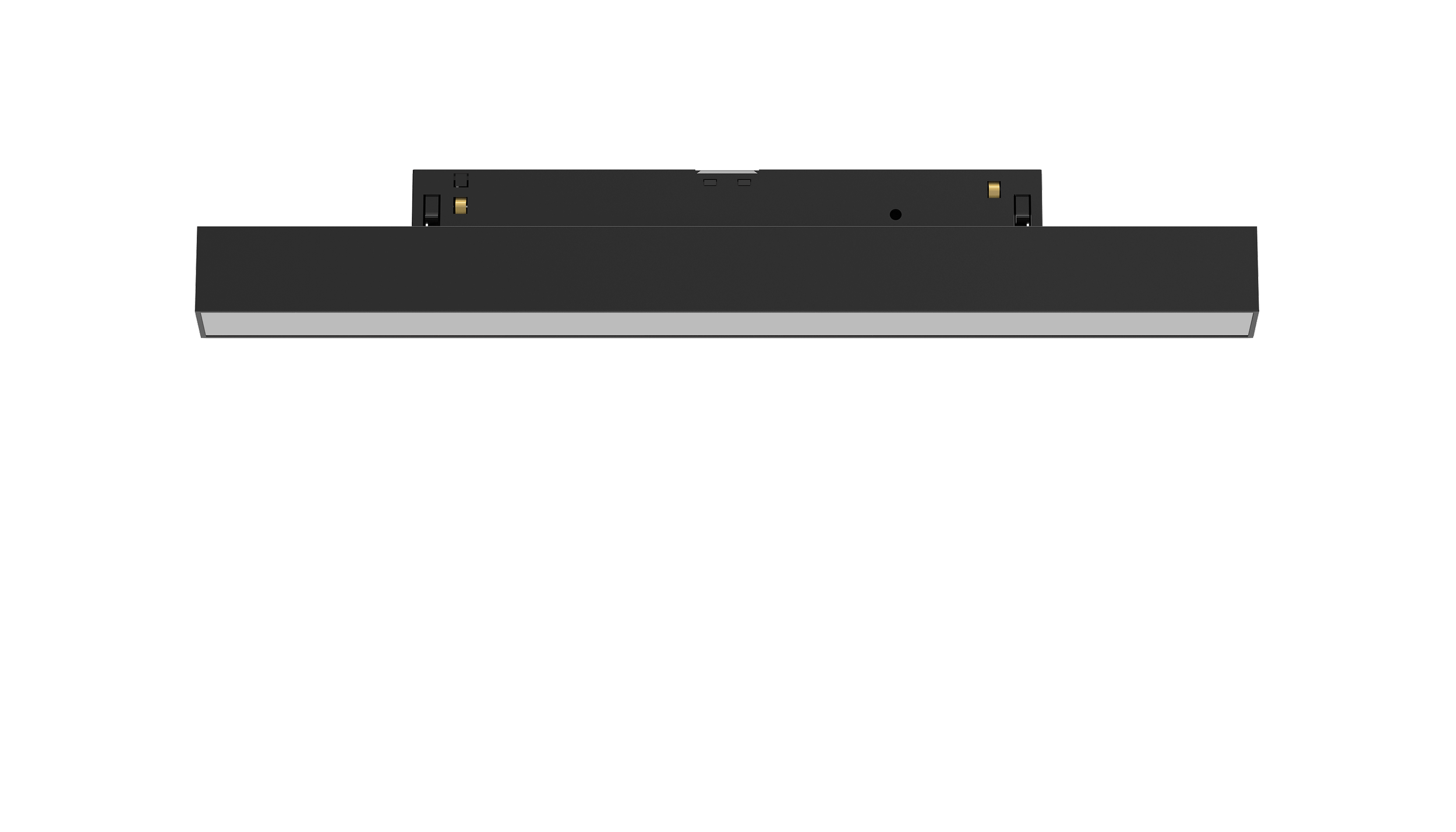

TRAX—Linear Opal Diffuser
A continuous linear lighting element with an opal polycarbonate diffuser. Produces soft, even illumination without visible hotspots — perfect for general ambient lighting in open-plan areas, corridors, or hospitality zones. The clean design integrates subtly within the TRAX rail while delivering high visual comfort.
-
Installation: Track Optics: Opal diffuser Luminaire real flux: 666-2234 lm CCT: 2700/3000/4000 K CRI: 90 MacAdam: ≤ 3 Rated life hours: 50000h L90 B10 at 35°C Power: 8/16/24 W Input voltage: 48V Driver: DC/DC Converter included Dimming: DALI Body: Aluminium, black RAL9005 powder painted Dimension: 280/560/840 x 25 x 22 mm IP protection: IP20 Weight: 180/360/540 g Warranty: 5 years
-
| ORDER CODE | W | CCT | CRI | BEAM ANGLE | DIMMING | REAL FLUX | DIMENSION | KG | DATASHEET |
|---|---|---|---|---|---|---|---|---|---|
| TRAX-LO-2700-280-B | 8 | 2700 K | 90 | OPAL DIFFUSER | DALI | 666 lm | L280 X W23 X H25 mm | 0.18 | View PDF → |
| TRAX-LO-3000-280-B | 8 | 3000 K | 90 | OPAL DIFFUSER | DALI | 700 lm | L280 X W23 X H25 mm | 0.18 | View PDF → |
| TRAX-LO-4000-280-B | 8 | 4000 K | 90 | OPAL DIFFUSER | DALI | 745 lm | L280 X W23 X H25 mm | 0.18 | View PDF → |
| TRAX-LO-2700-560-B | 16 | 2700 K | 90 | OPAL DIFFUSER | DALI | 1332 lm | L560 X W23 X H25 mm | 0.36 | View PDF → |
| TRAX-LO-3000-560-B | 16 | 3000 K | 90 | OPAL DIFFUSER | DALI | 1394 lm | L560 X W23 X H25 mm | 0.36 | View PDF → |
| TRAX-LO-4000-560-B | 16 | 4000 K | 90 | OPAL DIFFUSER | DALI | 1490 lm | L560 X W23 X H25 mm | 0.36 | View PDF → |
| TRAX-LO-2700-840-B | 24 | 2700 K | 90 | OPAL DIFFUSER | DALI | 1998 lm | L840 X W23 X H25 mm | 0.54 | View PDF → |
| TRAX-LO-3000-840-B | 24 | 3000 K | 90 | OPAL DIFFUSER | DALI | 2091 lm | L840 X W23 X H25 mm | 0.54 | View PDF → |
| TRAX-LO-4000-840-B | 24 | 4000 K | 90 | OPAL DIFFUSER | DALI | 2234 lm | L840 X W23 X H25 mm | 0.54 | View PDF → |

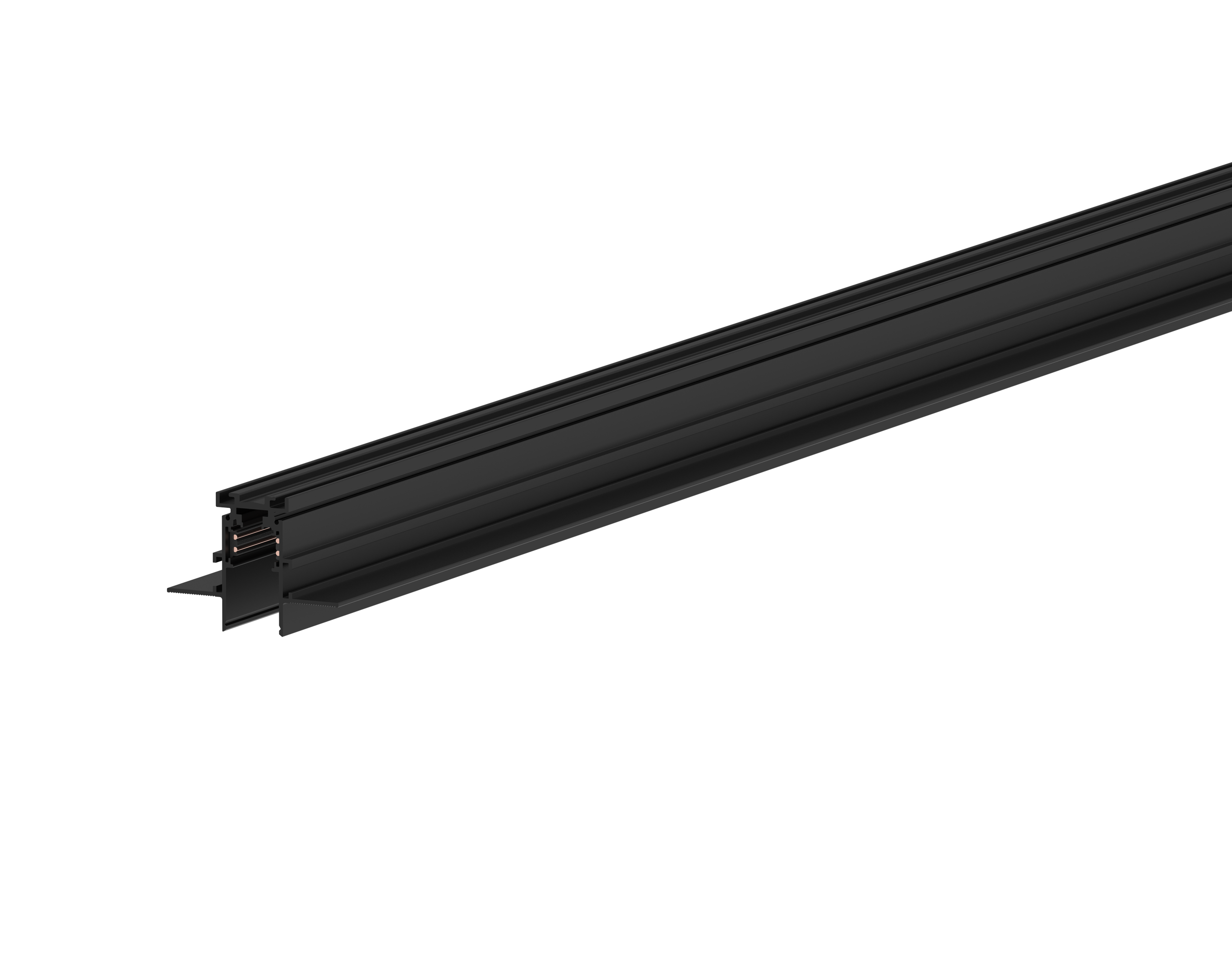

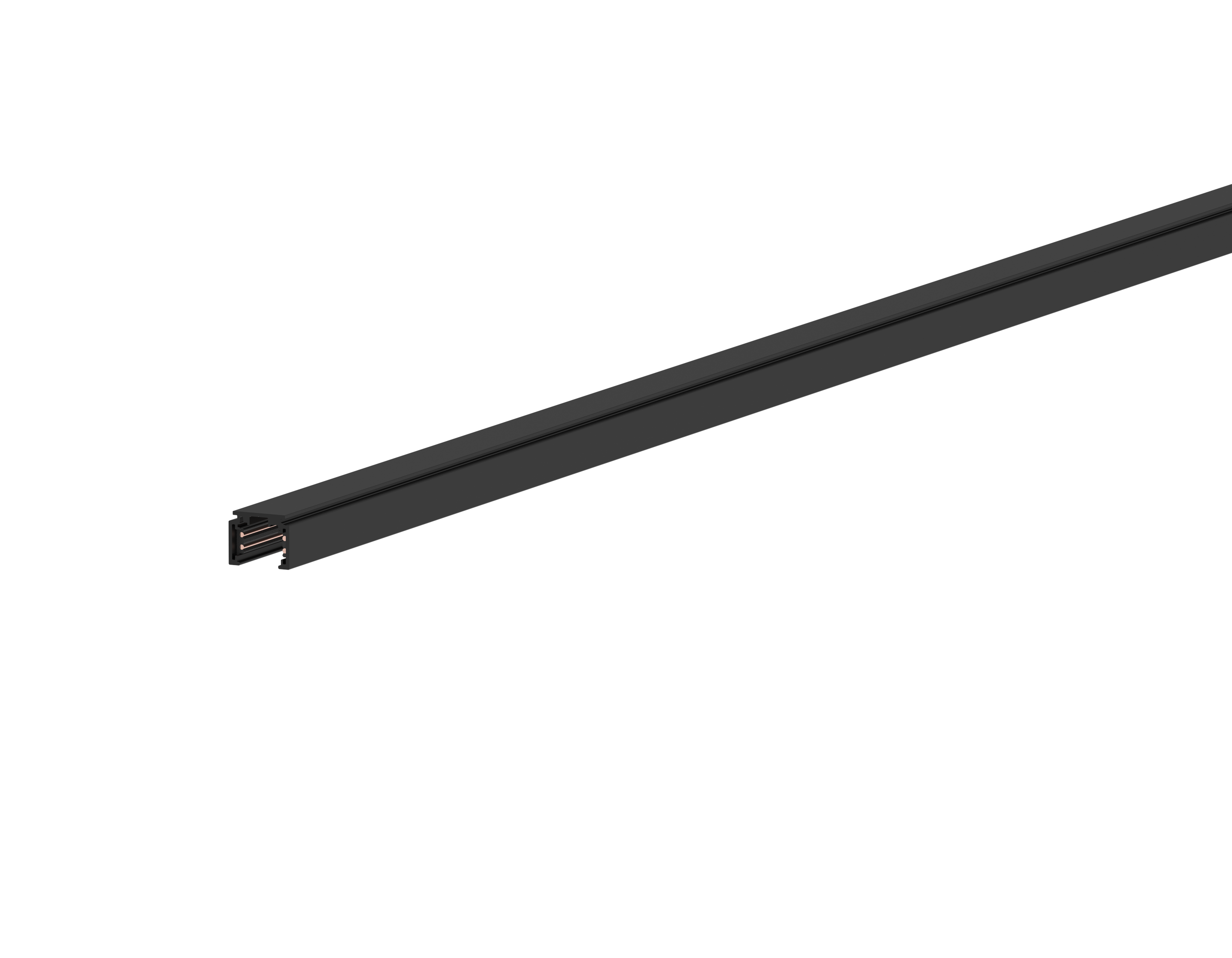

COMPATIBLE WITH ALL TRAX PROFILES

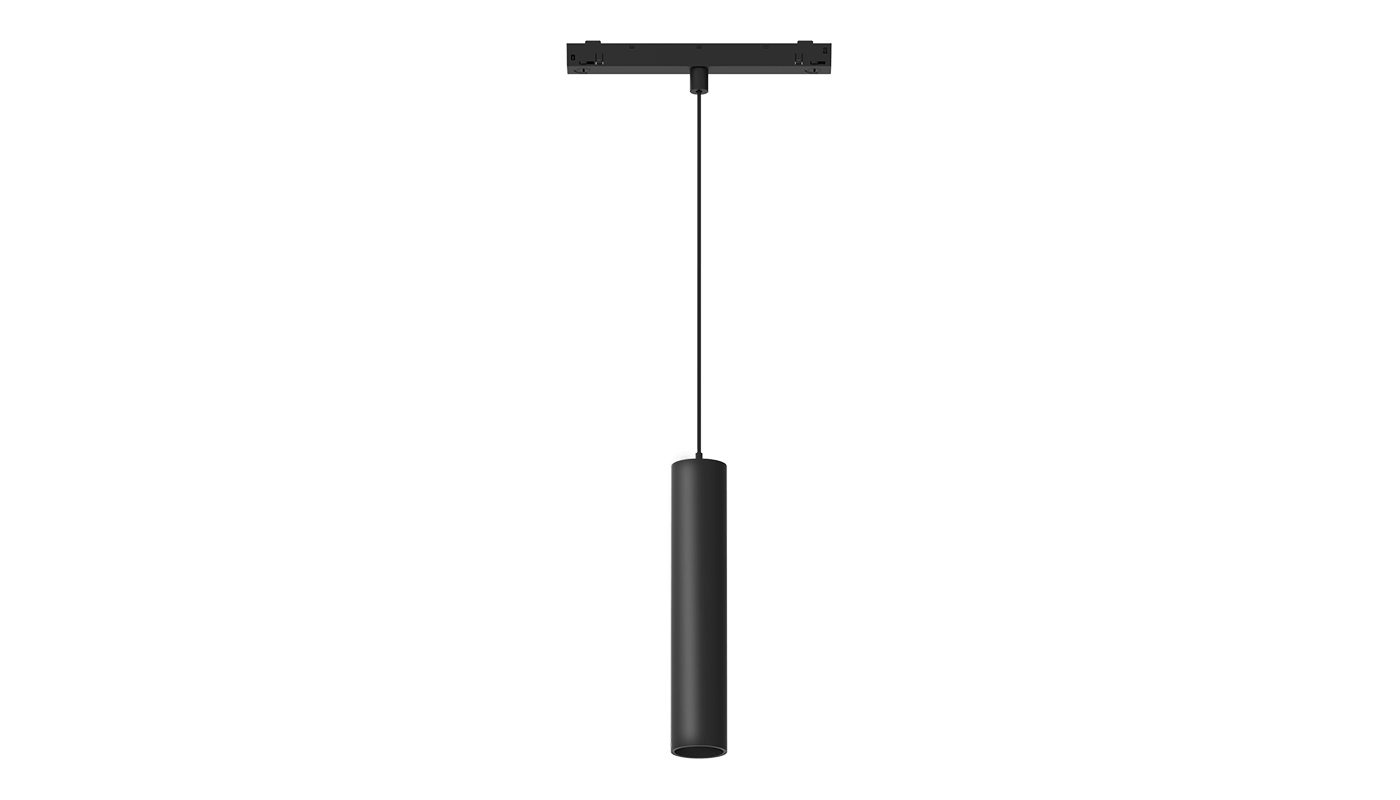

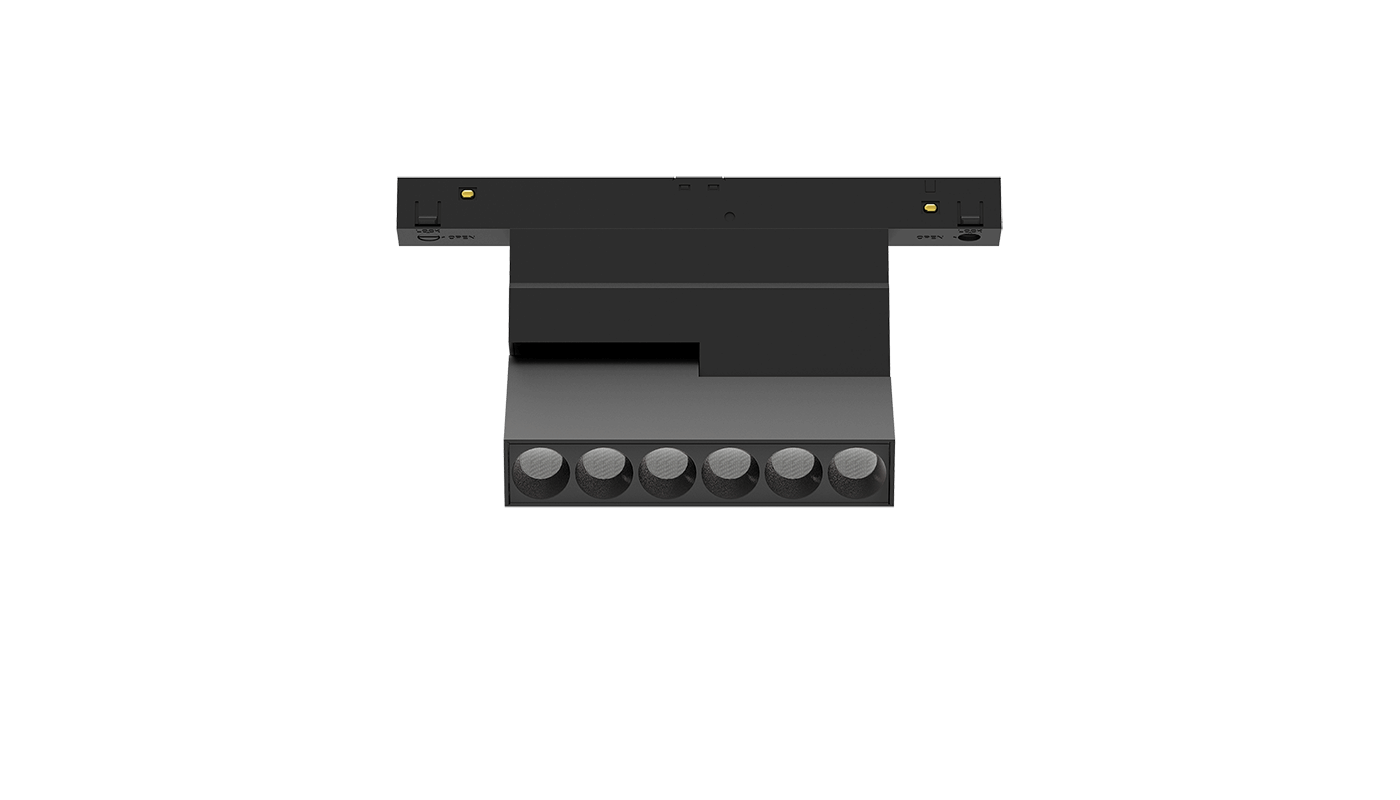

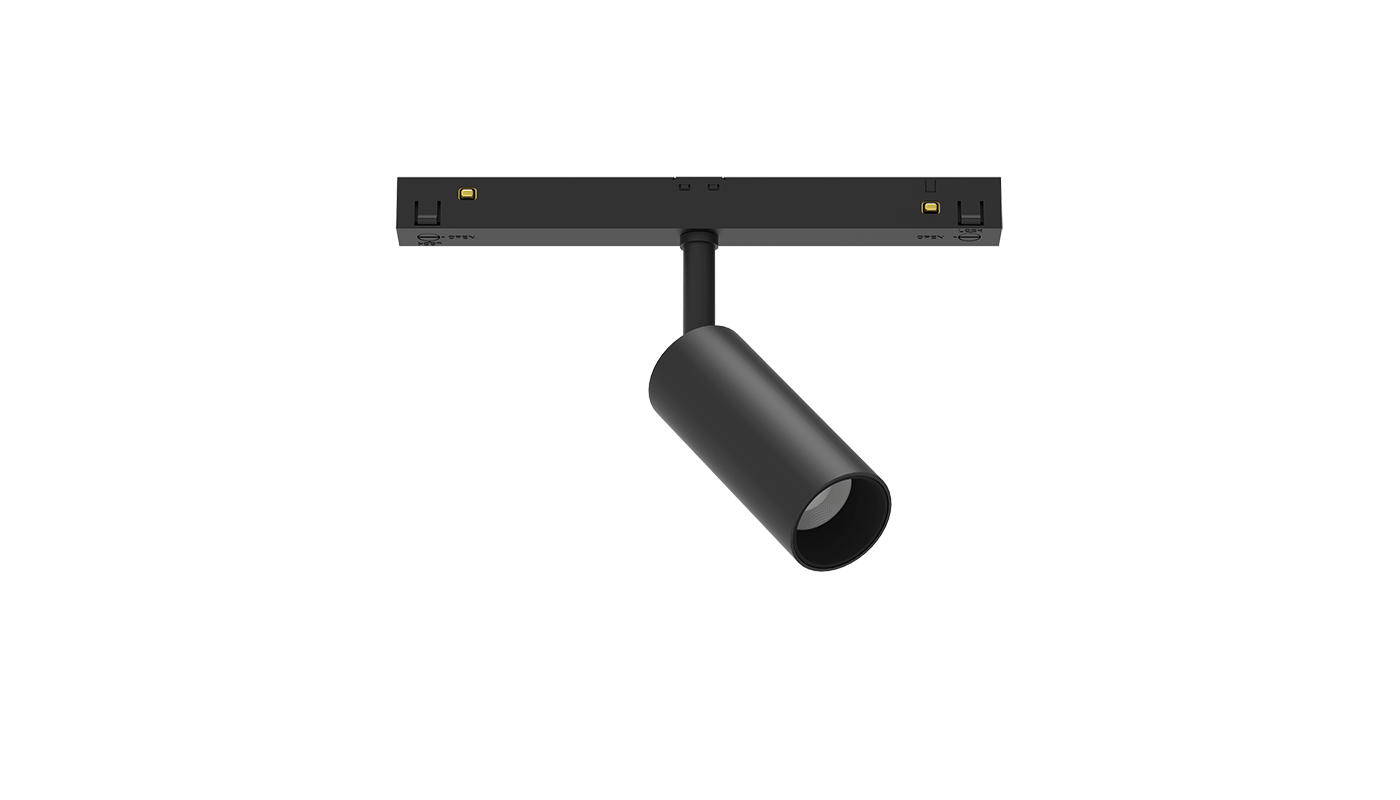

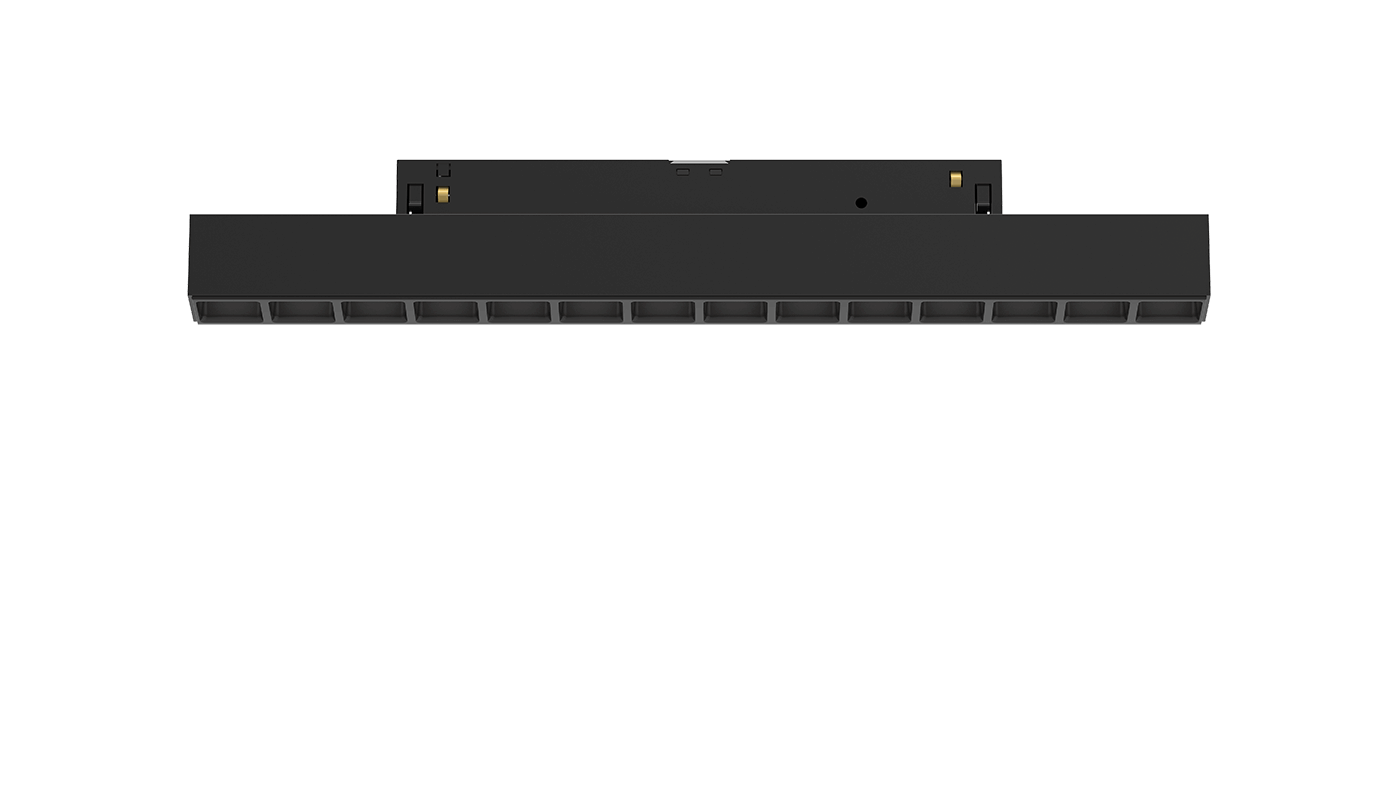

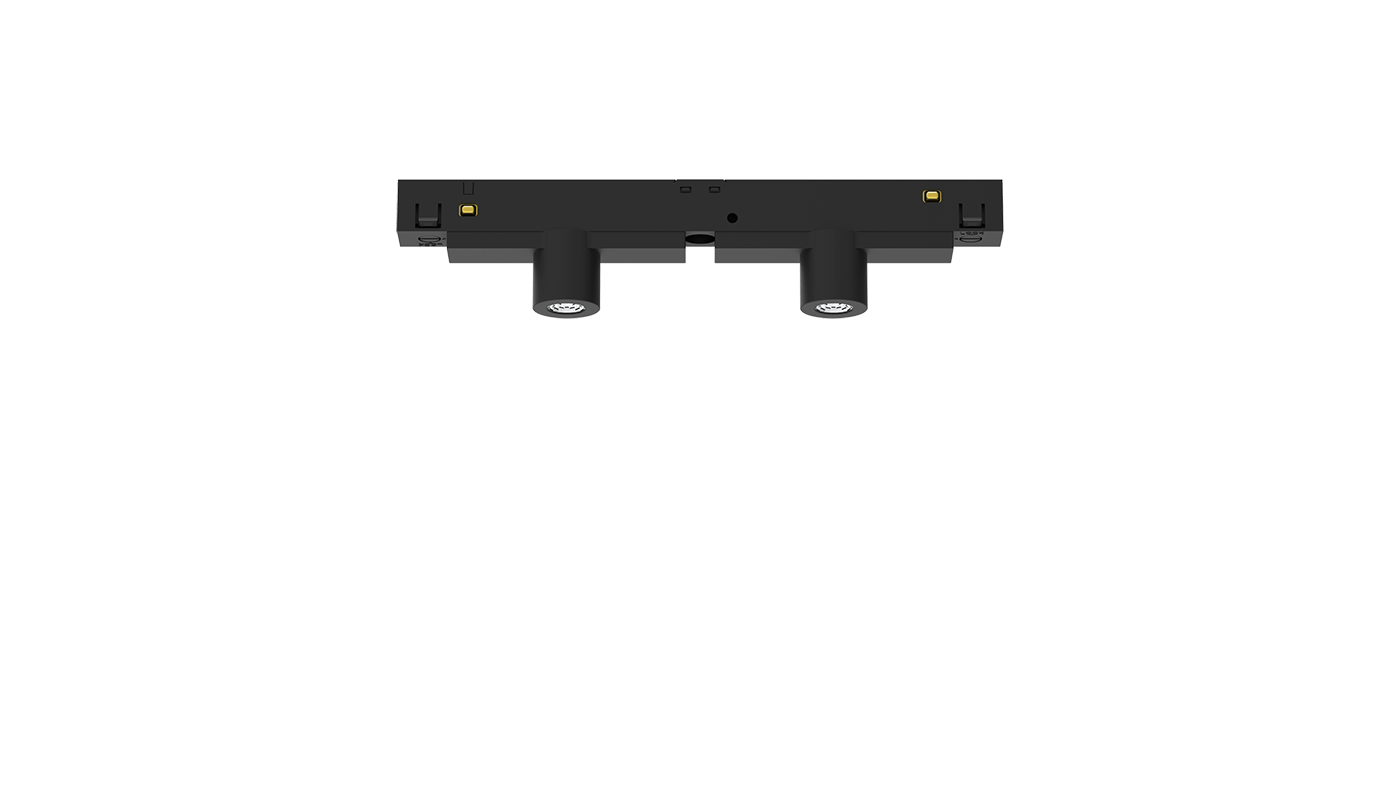

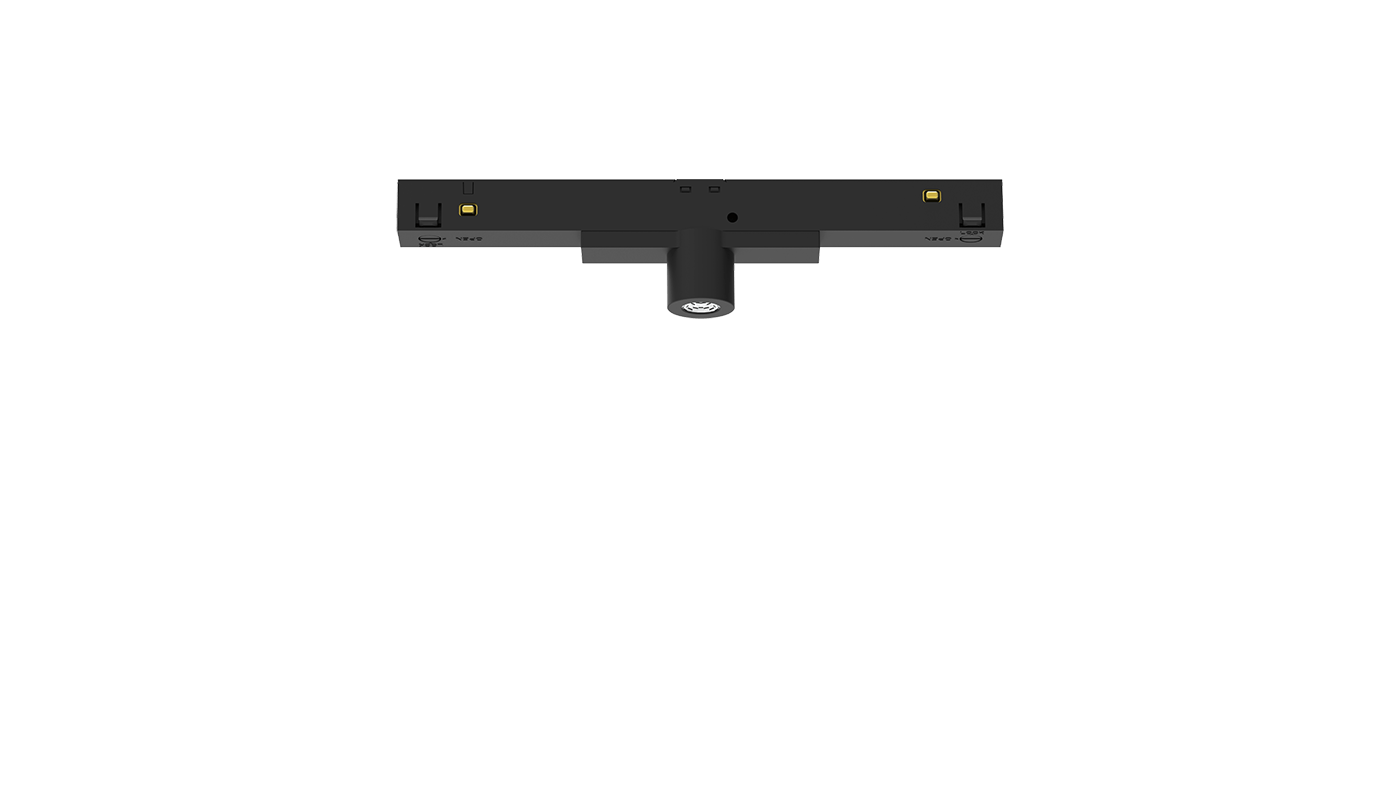

ALL TRAX MODULES
