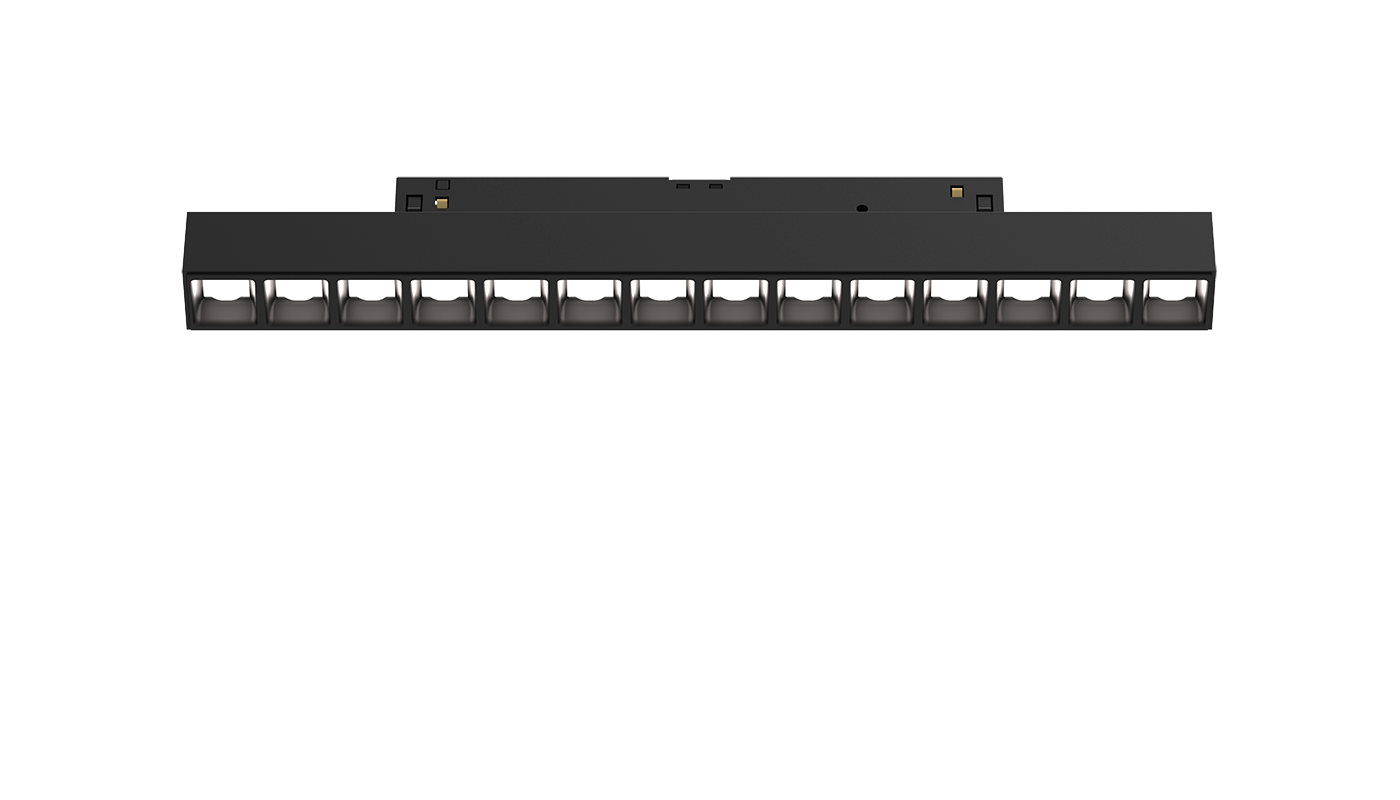

TRAX—Linear Lenses
A slim, linear lighting module equipped with precision-milled lenses. Delivers uniform, glare-controlled illumination, ideal for workspaces, galleries, or circulation zones. Engineered to provide visual comfort while maintaining a clean, uninterrupted appearance within the TRAX rail.
-
Installation: Track Optics: LEDIL DAISY MINI Beam angle: 30°/55° Luminaire real flux: 1742-2253 lm CCT: 2700/3000/4000 K CRI: 90 MacAdam: ≤ 3 Rated life hours: 50000h L90 B10 at 35°C Power: 28 W Input voltage: 48V Driver: DC/DC Converter included Dimming: DALI Body: Aluminium, black RAL9005 powder painted Dimension: 280 x 25 x 22 mm IP protection: IP20 Weight: 225g Warranty: 5 years
-
| ORDER CODE | W | CCT | CRI | BEAM ANGLE | DIMMING | REAL FLUX | DIMENSION | KG | DATASHEET |
|---|---|---|---|---|---|---|---|---|---|
| TRAX-LL-2700-30-B | 28 | 2700 K | 90 | 30° | DALI | 2045 lm | L280 X W23 X H25 mm | 0.23 | View PDF → |
| TRAX-LL-2700-55-B | 28 | 2700 K | 90 | 55° | DALI | 1742 lm | L280 X W23 X H25 mm | 0.23 | View PDF → |
| TRAX-LL-3000-30-B | 28 | 3000 K | 90 | 30° | DALI | 2118 lm | L280 X W23 X H25 mm | 0.23 | View PDF → |
| TRAX-LL-3000-55-B | 28 | 3000 K | 90 | 55° | DALI | 1833 lm | L280 X W23 X H25 mm | 0.23 | View PDF → |
| TRAX-LL-4000-30-B | 28 | 4000 K | 90 | 30° | DALI | 2253 lm | L280 X W23 X H25 mm | 0.23 | View PDF → |
| TRAX-LL-4000-55-B | 28 | 4000 K | 90 | 55° | DALI | 1950 lm | L280 X W23 X H25 mm | 0.23 | View PDF → |
COMPATIBLE WITH ALL TRAX PROFILES
