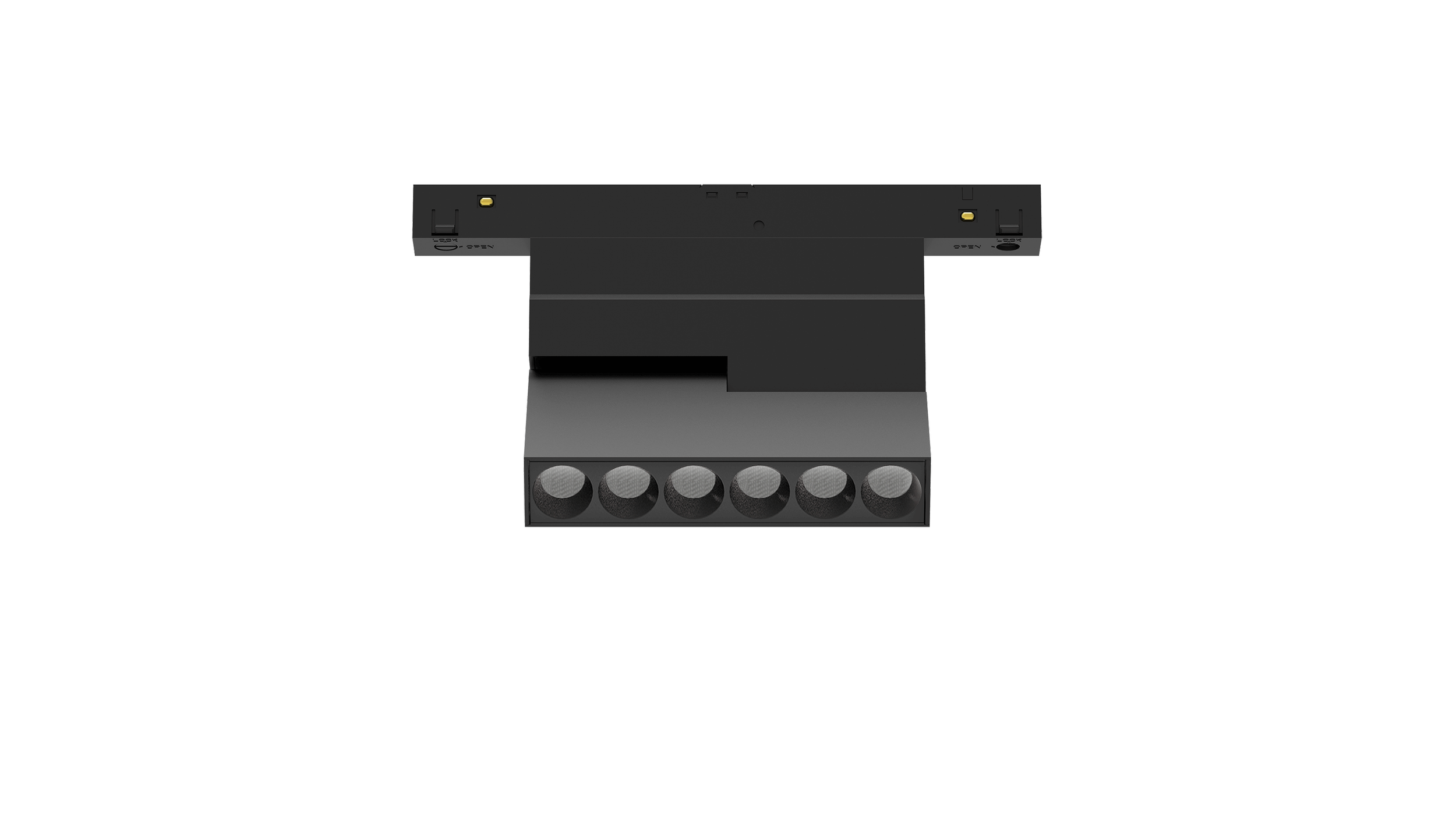

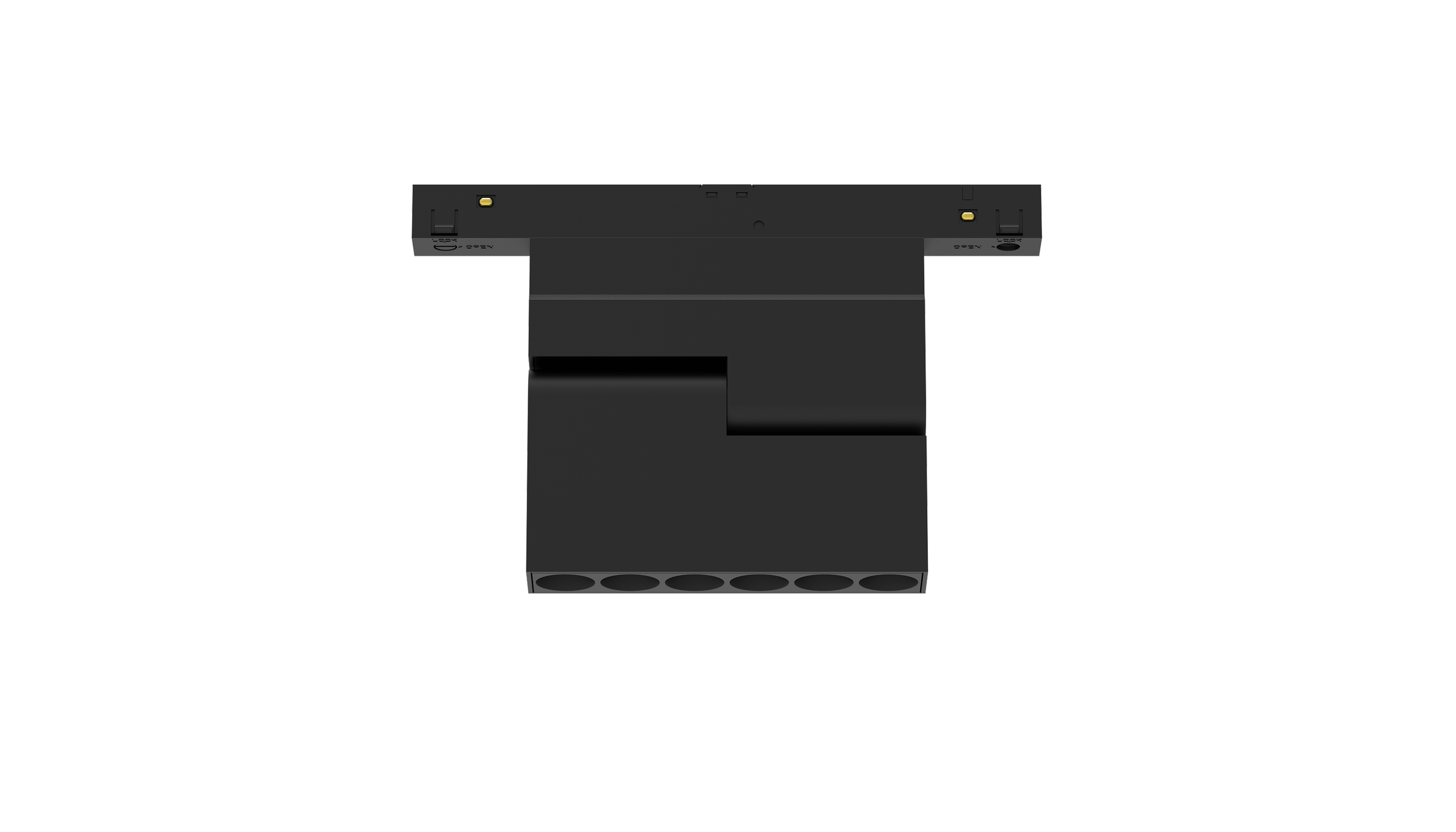

TRAX—Flex Lenses
A flexible linear module with integrated reflector optics, designed to follow curves or custom architectural paths. Ideal for applications where subtle, continuous lighting is required along shelves, niches, or irregular surfaces. The magnetic connection allows seamless installation and easy realignment.
-
Installation: Track Optics: PMMA TIR Lens Beam angle: 36° Luminaire real flux: 760 lm CCT: 3000 K CRI: 90 MacAdam: ≤ 3 Rated life hours: 50000h L90 B10 at 35°C Power: 10 W Input voltage: 48V Driver: DC/DC Converter included Dimming: DALI Body: Aluminium, black RAL9005 powder painted Dimension: 117 x 105 x 22 mm IP protection: IP20 Weight: 300g Warranty: 5 years
-
| ORDER CODE | W | CCT | CRI | BEAM ANGLE | DIMMING | REAL FLUX | DIMENSION | KG | DATASHEET |
|---|---|---|---|---|---|---|---|---|---|
| TRAX-FL-3000-36-B | 10 | 3000 K | 90 | 36° | DALI | 760 lm | 117 X 55 mm | 0.3 | View PDF → |
